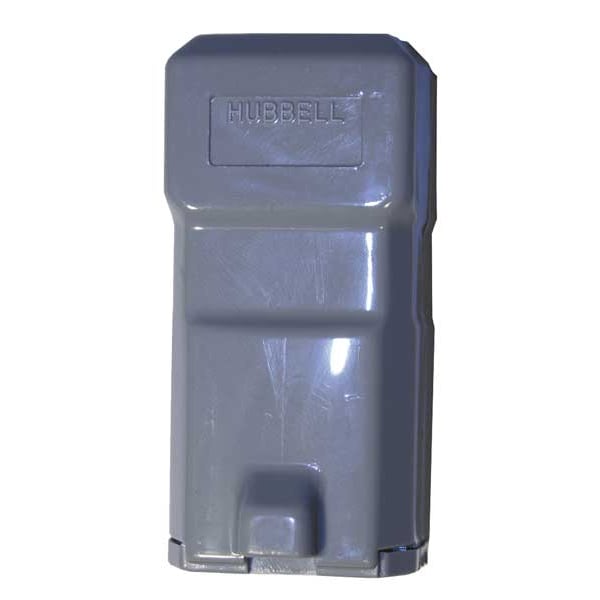

Connector, 5-15R, 15A, 125V
| Item - Plugs and Receptacles | Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 15 A |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Plug Configuration - Plugs and Receptacles | 5 to 15 R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Hinged |
| Color - Plugs and Receptacles | Gray |
| Grade - Plugs and Receptacles | Commercial |
| Antimicrobial | No |
| Standards | CSA Certified, NEMA WD-6, UL Listed |
| Cord Size | 0.22 to 0.66 in |
| Special Features | Moisture, Dust, and Weather Resistant |
| Material | Nylon |
| Power Indicator | No |
| HP | 1/2 hp |
| Grade | Commercial |
| Color | Gray |
| Amps | 15 |
| Item | Straight Blade Connector |
| IP Rating | IP20 |
| Corrosion Resistant | No |
| Phase | Single |
| Housing Color | Gray |
| Wire Connection Type | Screw Terminals |
| For Location | Indoor |
| Cap Type | No Cap or Cover |
| Minimum Operating Temperature | -40 Degrees C |
| Grounding | Grounded |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Minimum Wire Size | 18 AWG |
| Shrouded | No |
| Contact Material | Brass |
| For Maximum Cable Diameter | 0.66 in |
| Voltage Rating | 125 V AC |
| For Minimum Cable Diameter | 0.22 in |
| Market | Industrial, Commercial |
| Connection Orientation | Straight |
| Horsepower Rating | 0.5 HP |
| Maximum Wire Size | 12 AWG |
| Housing Material | Thermoplastic Elastomer |
| For Environment | Dry |
| Polarized | Yes |
| Current Rating | 15 A |
| Maximum Operating Temperature | 75 deg C |
| Power Indicating Light | No |
| Dielectric Strength | Withstands 2,000V minimum. |
| Weight | 0.15 lb |
| Blade Type | Straight Blade |
| Grounding Style | Grounding |
| NEMA Configuration | 5-15 |
| Material - Mounting Hardware | Cord Mounted |
| Nema Rating | 5 to 15 R |
| Display Size | Standard |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Wire Size | #18 AWG to #12 AWG |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Cord Range | 0.220"-.660" |
| Current / Amperage Rating | 15 A |
| Application | Commercial, Industrial |
| Insulation | Insulated Body |
| Item Type | Valise |
| Connectivity | Screw Terminals |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Voltage Rating Description | 125 V |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-12 AWG. Stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Horsepower - Maximum | 0.5 |
| Amperage Rating | 15 A |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Conductor Range | #14 AWG to #12 AWG |
| Package Quantity | 1 |
