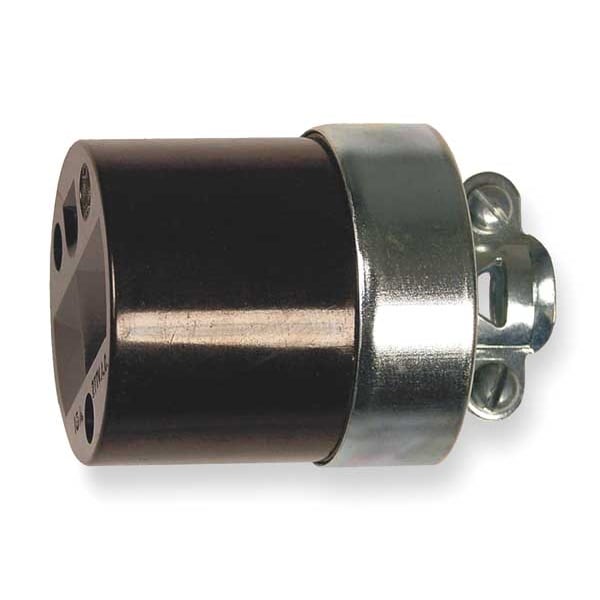

Connector, 7-15R, 15A, 277VAC
| Item - Plugs and Receptacles | Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 15 A |
| Voltage | 277VAC |
| Voltage - Plugs and Receptacles | 277V AC |
| NEMA Receptacle Configuration | 7-15R |
| NEMA Plug Configuration - Plugs and Receptacles | 7 to 15 R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Brown |
| Grade - Plugs and Receptacles | General |
| Antimicrobial | No |
| Item | Straight Blade Connector |
| Material | Nylon |
| Color | Brown |
| Power Indicator | No |
| Cord Size | 0.296 to 5/8 in |
| HP | 2 hp |
| IP Rating | IP20 |
| Phase | Single |
| Amps | 15 |
| Grade | General |
| Standards | CSA Certified, NEMA WD-6, UL Listed |
| Corrosion Resistant | No |
| Special Features | Insulated Body |
| Housing Material | Thermoplastic Elastomer |
| For Maximum Cable Diameter | 0.63 in |
| Minimum Operating Temperature | -40 Degrees C |
| Connection Orientation | Straight |
| Current Rating | 15 A |
| For Minimum Cable Diameter | 0.3 in |
| Voltage Rating | 277 V AC |
| Housing Color | Brown |
| Market | Industrial, Commercial |
| Minimum Wire Size | 14 AWG |
| Cap Type | No Cap or Cover |
| Polarized | Yes |
| Power Indicating Light | No |
| Contact Material | Brass |
| Shrouded | No |
| Grounding | Grounded |
| Maximum Operating Temperature | 75 deg C |
| For Location | Indoor |
| Wire Connection Type | Screw Terminals |
| For Environment | Dry |
| Maximum Wire Size | 10 AWG |
| Resistance Properties | Corrosion Resistance |
| Horsepower Rating | 2 HP |
| Grounding Style | Grounding |
| Weight | 0.2 lb |
| Dielectric Strength | Withstands 2,000V minimum. |
| Display Size | Standard |
| Current / Amperage Rating | 15 A |
| Application | Commercial, Industrial |
| Material - Mounting Hardware | Cord Mounted |
| Number Of Conductors | 3-Wire Grounding |
| Nema Rating | 7 to 15 R |
| Amperage Rating | 15 A |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Wire Size | #14 AWG to #10 AWG |
| Insulation | Insulated Body |
| Item Type | Armored |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-1 or better Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Horsepower - Maximum | 2 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Conductor Range | #14 AWG to #12 AWG |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Connectivity | Screw Terminals |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 277 V |
| Cord Range | 0.296"-0.625" |
| Package Quantity | 1 |
