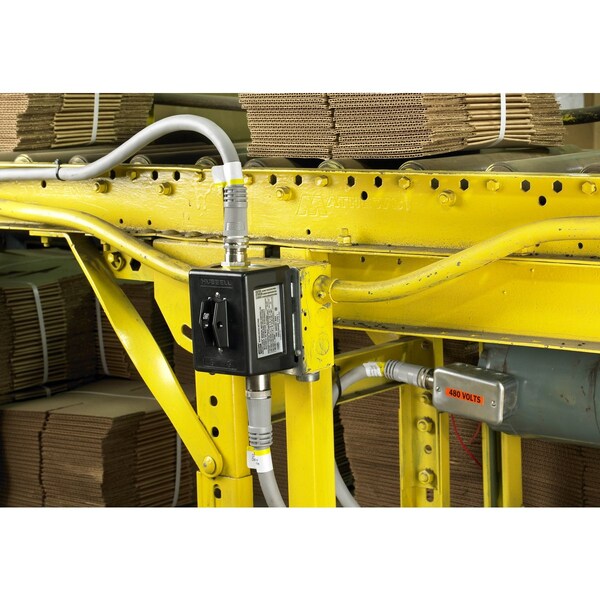

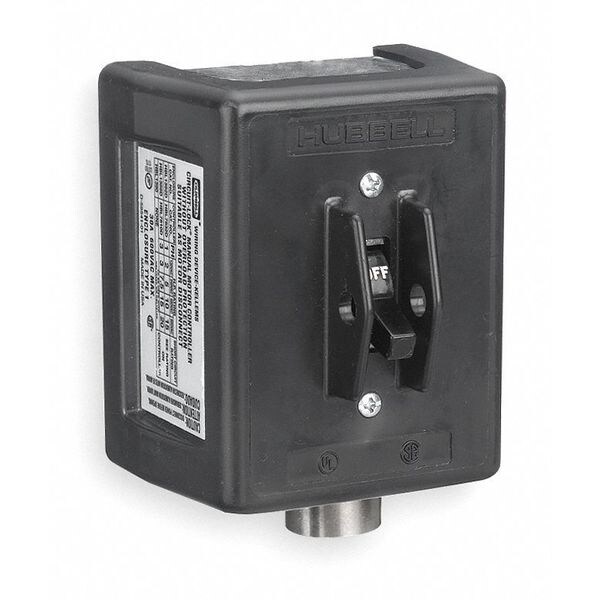

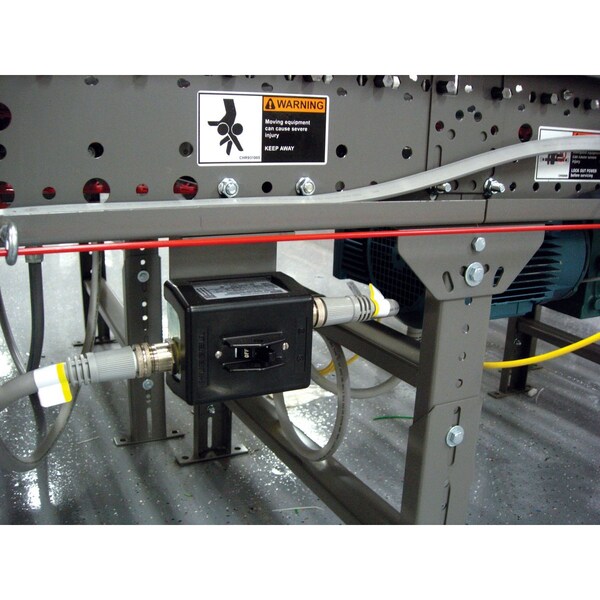

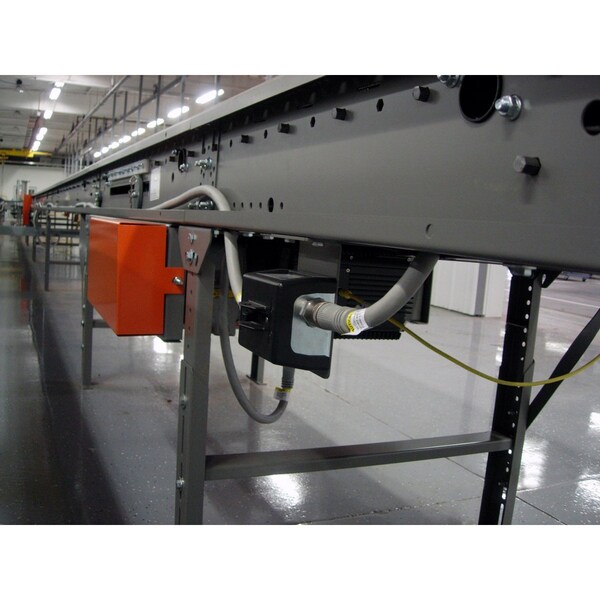

Disconnect Switch, 2DZU9, 2DZV1, 2DZV2, 2XE21, 2XE22
| Item | Disconnect Switch |
|---|---|
| For Use With | 2DZU9, 2DZV1, 2DZV2, 2XE21, 2XE22 |
| Dimension | 4.52 in L x 3.4 in H x 3.97 in W |
| Height | 3.4 in |
| Width | 3.97 in |
| Type | With Female Receptacle |
| NEMA Enclosure Type | NEMA 1 |
| Plug Type | 4-Wire |
| Switch Type | 3 Pole |
| Max. Voltage | 600V AC |
| Voltage | 600VAC |
| Plug End | Female |
| Receptacle | Female |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Standards | Industrial Control Equipment File #E36355, Listed to UL 2238 and UL 50E, UL 508 |
| Length | 4.52 in |
| Item - Electrical Enclosure | Switch Enclosure |
| UL 94 Flammability Rating | V-0, HB |
| Wire Size | 10 AWG, 12 AWG, 14 AWG |
| For Location | Indoor |
| Current Rating | 30 A |
| Voltage Rating | 600V AC |
| Maximum Operating Temperature | 60 deg C |
| Minimum Operating Temperature | -40 Degrees C |
| Resistance Properties | Impact Resistant |
| NEMA Enclosure Rating | 1 |
| Weight | 2 lbs |
| Package Quantity | 1 |
