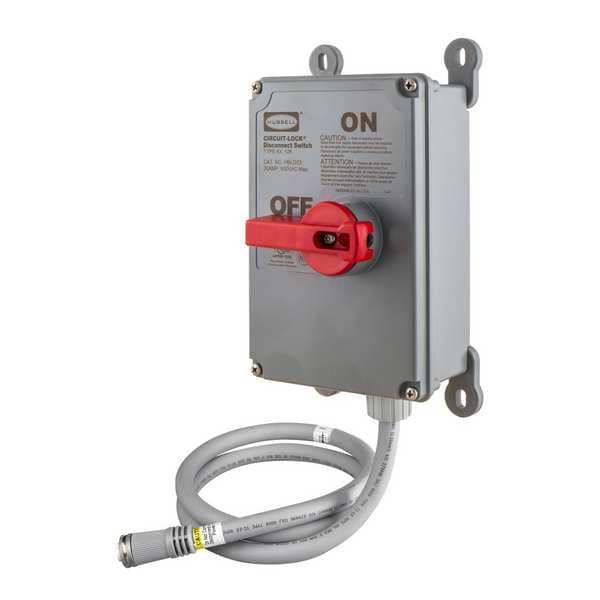

Disconnect Switch, 8-1/2 in L x 4.12 in H x 6 in W
| Item | Disconnect Switch |
|---|---|
| For Use With | 2DZU9, 2DZV1, 2DZV2, 2XE20 Receptacle, 2XE21, 2XE22 |
| Dimension | 8-1/2 in L x 4.12 in H x 6 in W |
| Height | 4.12 in |
| Width | 6 in |
| Color | Silver |
| NEMA Enclosure Type | NEMA 4X |
| Switch Type | 3 Pole |
| Plug Type | 4-Wire |
| Max. Voltage | 600V AC |
| Voltage | 600VAC |
| Plug End | Female |
| Standards | Industrial Control Equipment File #E36355, Listed to UL 2238 and UL 50E, UL 508 |
| Phase | Three |
| Series | MotorQuick/LINKOSITY |
| Number of Wires | 4 |
| Load Capacity | Inductive |
| Item - Electrical Enclosure | Switch Enclosure |
| Length | 8-1/2 in |
| Cord Length | 5 ft |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40 Degrees C |
| Wire Size | 10 AWG, 12 AWG, 14 AWG |
| UL 94 Flammability Rating | V-0 |
| For Location | Indoor, Outdoor |
| Weight | 4.9 lbs |
| Wattage | 18000 |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Environmental Conditions | Indoor and Outdoor |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Operating Cycles | 10,000 Cycles Minimum |
| Ingress Protection | IP67 |
| Connectivity | Pre-Wired |
| Package Quantity | 1 |
