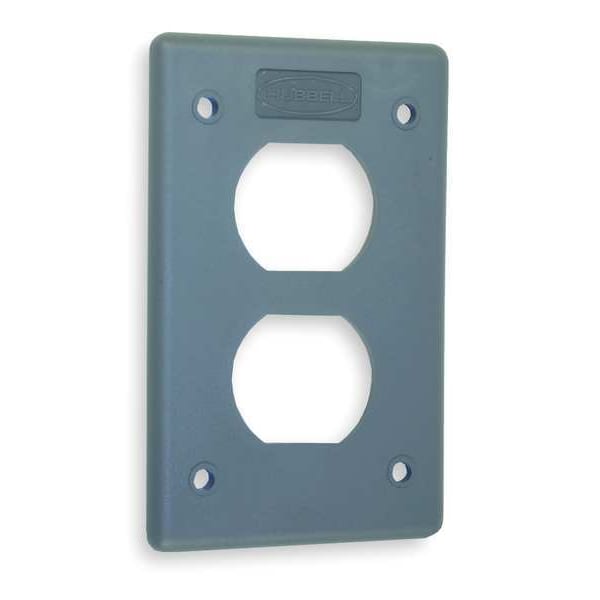

Duplex Opening Wall Plates, Number of Gangs: 1 Thermoplastic, Light Texture Finish, Gray
| Item | Duplex Opening Wall Plates |
|---|---|
| Number of Gangs | 1 |
| Color | Gray |
| Material | Thermoplastic |
| Size | 4.56 in H x 2.84 in W |
| Finish | Light Texture |
| Weather Resistant | No |
| Tamper Resistant | No |
| Description/Special Features | UV Stabilized |
| Length | 4.56 in |
| Type | Cover Plate |
| Width | 2.84 in |
| Standards | CSA C22.2 No. 0.4, CSA C22.2 No. 94 Enclosures Types 1 3R, CSA Certified C22.2 No. 18, UL 467, UL 514C, UL Listed 50 Enclosures Types 1 3R |
| Wall Plate Type | Duplex Outlet |
| Plate Size | Standard |
| Number of Switch Openings | 0 |
| Overall Height | 0.3 in |
| For Use With | Portable Outlet Box |
| Number of Outlet Openings | 1 |
| Material Type | Non-Metallic |
| Mount Type | Box |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| Overall Width | 2.8 in |
| UL 94 Flammability Rating | V-0 |
| Shape | Rectangular |
| Portable Outlet Box | Portable Outlet Box Plates |
| Listings and Certifications | UL514C, UL467 and UL50 Enclosures Types 1, 3R. CSA C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No.0.4 (Impedance). |
| POB Style | Duplex Non-Metallic FS Cover Plate |
| Performance | Environmental - Flammability - UL 94V-0, 94-5VA classification Environmental - Impact and Crush Resistance - In accordance with UL 514C, UL50, C22.2 No. 18 and C22.2 No. 94. Environmental - Moisture Resistance - Wet and damp locations, Enclosure Type 3R when used with weatherproof cover plates.Dry, indoors locations, Enclosure Type 1 with all other cover plates Environmental - Operating Temperature - 80°C maximum -35°C minimum Environmental - UV Resistance - All materials are UV stabilized |
| Cord Range | .38" - .75" |
| Material - Mounting Hardware | Screws |
| Knockouts | None |
| Item Type | Covers |
| Display Size | 1-Gang |
| Application | 1) Duplex Opening |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Construction | Molded |
| Industry Standard(s) | C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4 UL 514C, UL467 and UL50 Enclosures Types 1, 3R |
| Style | Non-Metallic Fs Cover Plate |
| Number Of Outlets | 1-Device |
| Package Quantity | 1 |
