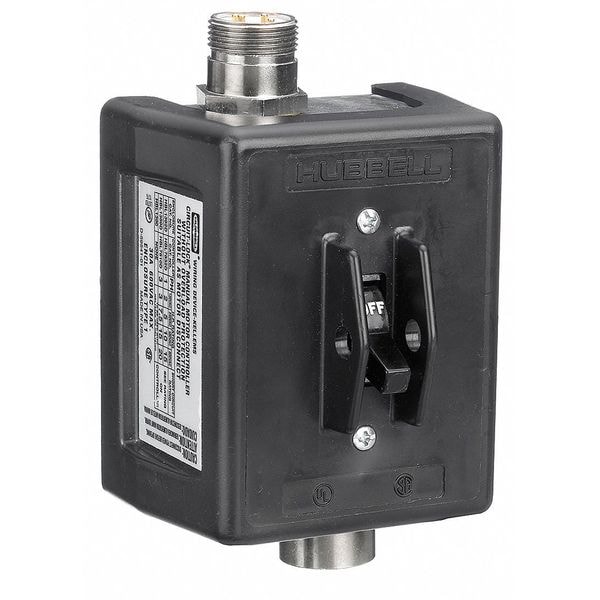

Interruptor de desconexión cerrado, 600V CA, NEMA 1
| Item | Enclosed Disconnect Switch |
|---|---|
| Amps | 30 |
| Voltage | 600 V AC |
| Phase | Three |
| NEMA Enclosure Type | 1 |
| IP Rating | 67 |
| Number of Poles | 3 |
| For Use With | 2DZU9, 2DZV1, 2DZV2, 2XE21, 2XE22 |
| Type | 3 Pole |
| Standards | Industrial Control Equipment File #E36355, UL 2238, UL 508, UL 50E |
| Jacket Type | TC-ER |
| Minimum Operating Temperature | -40 Degrees C |
| NEMA Enclosure Rating | 1 |
| Gender Configuration | Male x Female |
| Wire Size | 10 AWG, 12 AWG, 14 AWG |
| For Location | Indoor |
| Resistance Properties | Impact Resistant |
| Housing Material | Non-Metallic |
| Voltage Rating | 600 V AC |
| Electrical Connection Type | Pin and Sleeve |
| Current Rating | 30 A |
| UL 94 Flammability Rating | HB, V-0 |
| Number of Receptacles | 2 |
| Contact Material | Nickel-Plated Brass |
| Maximum Operating Temperature | 60 Degrees C |
| Color | Black |
| Component Type | Quick-Disconnect Switch |
| MotorQuick Style | Enclosure with LINKOSITY Female and Male Receptacle |
| MotorQuick Item | Type 1 Enclosure |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Listing and Certifications | cUL US Listed |
| Package Quantity | 1 |
