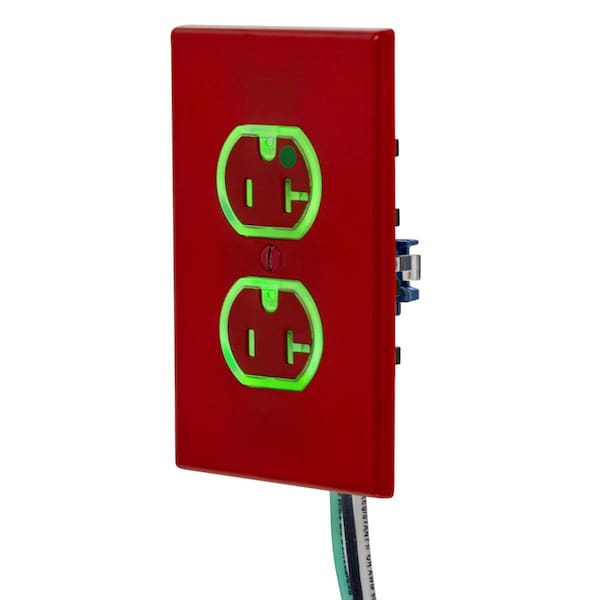

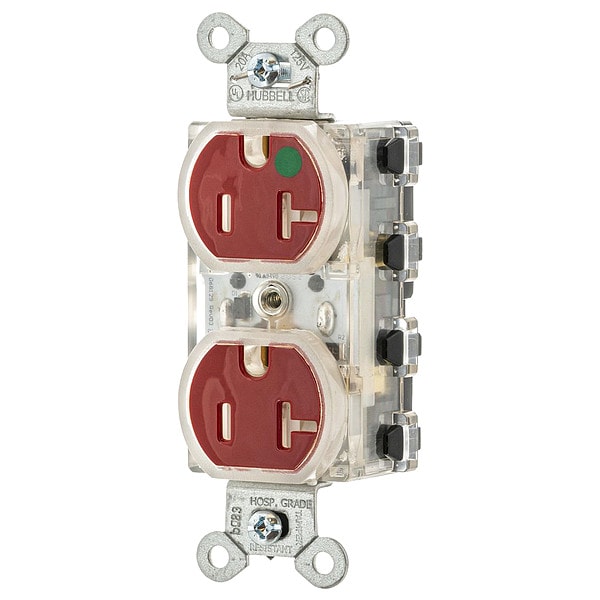

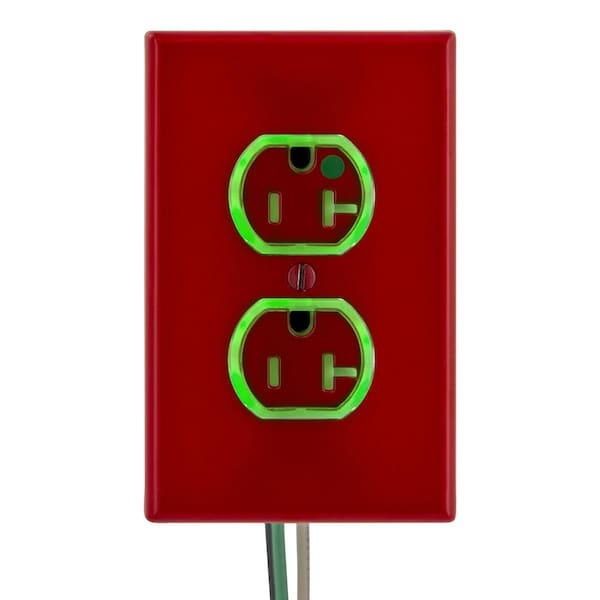

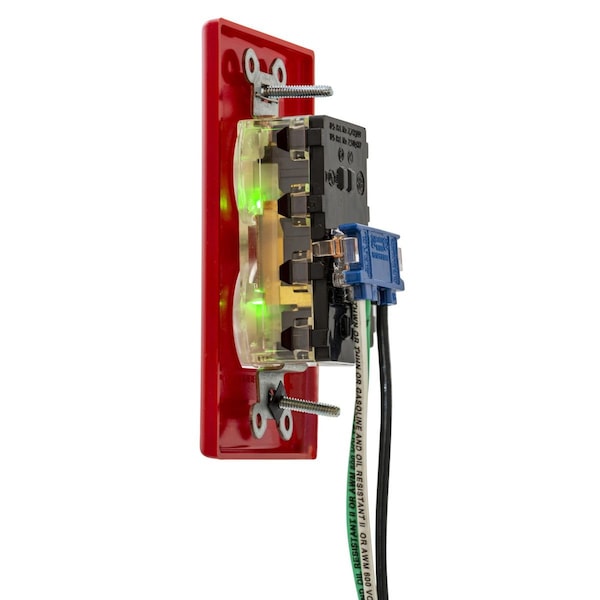

Extra Heavy Duty Hospital Grade SNAPConnect Receptacle
| Standards | CSA, UL |
|---|---|
| Includes | Mounting Screw |
| Phase | Single |
| Item | Snapconnect receptacle |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Material | Brass |
| NEMA Receptacle Configuration | 5-20R |
| Maximum Wire Size | 12 AWG |
| Surge Protection | No |
| Maximum Operating Temperature | 167 deg F |
| Housing Color | Red |
| Mount Hole Center-to-Center Height | 3.3 in |
| GFCI | No |
| Overall Depth | 1 in |
| Visual Indicator Lights | Power Connected |
| Current Rating | 20 A |
| AFCI | No |
| Mount Type | Flush |
| Connection Orientation | Straight |
| Minimum Operating Temperature | -40 deg F |
| Horsepower Rating | 0.5 HP |
| Includes Mounting Hardware | Yes |
| Market | Industrial |
| For Location | Indoor |
| Polarized | Yes |
| Grade | Hospital Grade |
| Voltage Rating | 125 V |
| UL 94 Flammability Rating | V-2 |
| Wire Connection Type | Modular Wiring |
| Receptacle Type | Duplex |
| Number of Outlets | 2 |
| Face Plate Height | 2.6 in |
| Grounding | Grounded |
| Resistance Properties | Tamper Resistant |
| Housing Material | Polycarbonate |
| Power Contacts | Brass |
| Dielectric Voltage | Withstands 2,000V minimum |
| Mounting Screws | Zinc plated steel |
| Device Color | Red |
| Ground Contacts | Brass |
| Current Interrupting | Receptacle certified for current interrupting at full rated current |
| Mounting Strap | Galvanized steel |
| Base | PBT |
| Face | Nylon |
| Automatic Self-grounding Staple | Stainless steel |
| Flammability | UL 94V-2 |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C (without impact) |
| Package Quantity | 1 |
