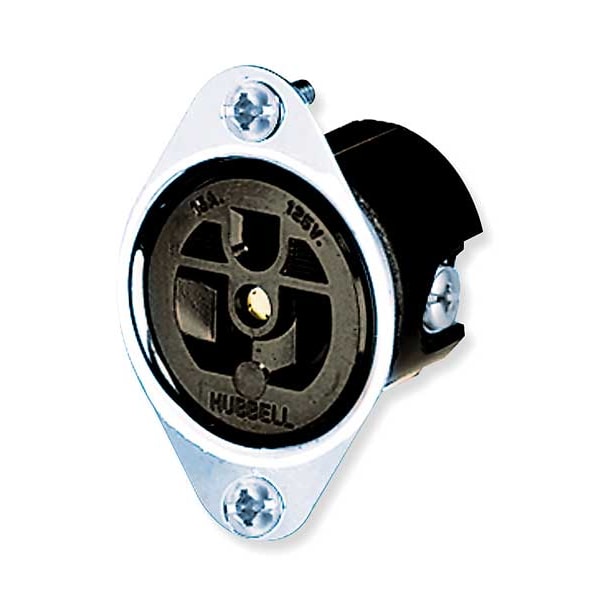

Flanged Receptacle, 15 A Amps, 125V AC, Panel Mount, Single Outlet, 5-15R, Brown
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Flanged Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Panel |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Standards | CSA Certified C22.2 No. 42, NEMA WD-6, UL E2186 |
| Number of Gangs | 1 |
| Material | Phenolic |
| Sub-Category | Flanged Receptacles |
| HP | 1/2 hp |
| Outlet Type | Single |
| Phase | Single |
| Amps - Plugs and Receptacles | 15 |
| Wiring Method | Side |
| Voltage | 125VAC |
| Amps | 15 |
| Color | Brown |
| Accessory Group | F |
| Mounting Type | Panel |
| Corrosion Resistant | No |
| Weather Resistant | No |
| Description | Finder Groove, Grounding |
| Type | Miniature |
| Overall Depth | 1.1 in |
| Includes | Mounting Hardware |
| Polarized | Yes |
| Wire Connection Type | Screw Terminals |
| GFCI | No |
| Minimum Wire Size | 14 AWG |
| Flange Type | Flanged |
| Horsepower Rating | 0.5 HP |
| NEMA Enclosure Rating | 1 |
| Flange Material | Stainless Steel |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Current Rating | 15 A |
| Flange Diameter | 1-1/2 in |
| Minimum Operating Temperature | -40 deg F |
| NEMA Receptacle Configuration | 5-15R |
| Maximum Wire Size | 10 AWG |
| Voltage Rating | 125V AC |
| Market | Commercial, Industrial |
| AFCI | No |
| UL 94 Flammability Rating | V-0 |
| Contact Material | Brass |
| Surge Protection | No |
| Grade | Federal Specification |
| Mount Type | Flush |
| Maximum Operating Temperature | 167 deg F |
| Mount Hole Center-to-Center Height | 2.1 in |
| Housing Color | Brown |
| Includes Mounting Hardware | Yes |
| Receptacle Type | Single |
| Cover Type | No Cover |
| Housing Material | Stainless Steel |
| For Location | Indoor |
| Shrouded | No |
| Flange Height | 1.1 in |
| Power Contacts Material | Phosphor Bronze |
| Rating | 15A, 125V |
| Horsepower | 0.5 |
| Standard | NEMA |
| Terminal Identification | Terminals identified in accordance with UL498 (Brass, White, Green). |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only. |
| Base Material | Phenolic |
| Certification | UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 |
| Dielectric Voltage | Withstands 2,000V minimum. |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C . |
| Terminal Screw Material | #8-32 Brass, Multiple Drive |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Face Style | Finder Groove |
| NEMA No. | 5 to 15 R |
| Flammability | UL 94 V2. |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Flange Style | Standard Metallic |
| Mounting Screw Material | Brass-Nickel Plated |
| Receptacle Grade | Heavy Duty Spec Grade |
| Current Interrupting | Certified for current interrupting at full rated current. |
| Amperage | 15 A |
| Top Material | Phenolic |
| Item Type | Single |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 125 V |
| Nema Rating | 5-15R |
| Horsepower - Maximum | 0.5 |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186 |
| Display Size | Standard Sized Product |
| Amperage Rating | 15 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Terminals |
| Current / Amperage Rating | 15 A |
| Wire Size | #14 AWG to #10 AWG |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Cord Range | 0.230"-0.720" |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 1875 W |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dielectric Strength | Withstands 2,000V minimum |
| Application | Heavy Duty |
| Package Quantity | 1 |
