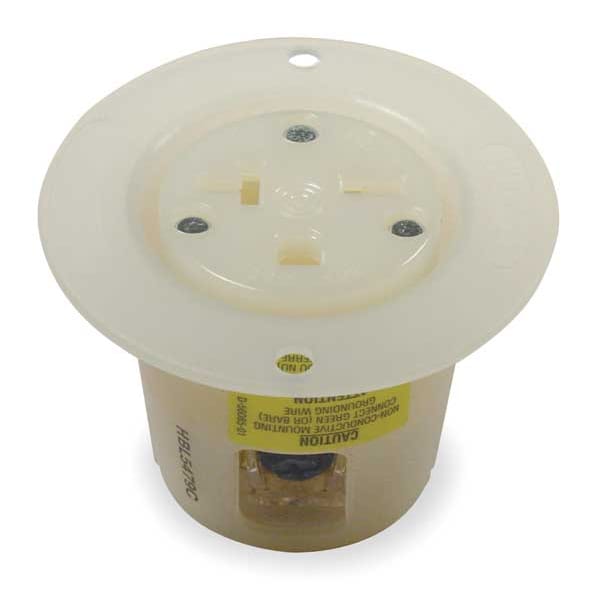

Flanged Receptacle, 20 A Amps, 250V AC, Panel Mount, Single Outlet, 6-20R, White
| Item | Flanged Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Panel |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 6-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Amps - Plugs and Receptacles | 20 |
| Number of Gangs | 1 |
| Color | White |
| Voltage | 250VAC |
| Weather Resistant | No |
| Material | Nylon/Polycarbonate |
| Special Features | #8-32 Multiple Drive Terminal Screws |
| Description | Designed to Accept Molded On Connector Bodies, Grounding |
| HP | 2 hp |
| Wiring Method | Back |
| Sub-Category | Flanged Receptacles |
| Phase | Single |
| Corrosion Resistant | No |
| Amps | 20 |
| Mounting Type | Panel |
| Standards | CSA Certified C22.2 No. 42, NEMA WD-6, UL E2186 |
| Outlet Type | Single |
| Height | 2.56 in |
| Width | 2.56 in |
| Type | Miniature |
| Connection Orientation | Straight |
| NEMA Enclosure Rating | 1 |
| Flange Shape | Round |
| NEMA Receptacle Configuration | 6-20R |
| Horsepower Rating | 2 HP |
| Cover Type | No Cover |
| Market | Commercial, Industrial |
| Shrouded | No |
| Maximum Wire Size | 10 AWG |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 18 AWG |
| AFCI | No |
| Maximum Operating Temperature | 167 deg F |
| Receptacle Type | Single |
| Flange Diameter | 2.6 in |
| Polarized | Yes |
| Minimum Operating Temperature | -40 deg F |
| Grounding | Grounded |
| Voltage Rating | 250V AC |
| Mount Type | Flush |
| Grade | Federal Specification |
| Flange Height | 1.7 in |
| Flange Material | Nylon |
| Overall Depth | 2.6 in |
| Resistance Properties | Impact Resistant |
| UL 94 Flammability Rating | V-2 |
| For Location | Indoor |
| GFCI | No |
| Includes | Mounting Hardware, Weatherproof Lift Cover |
| Flange Type | Flanged |
| Current Rating | 20 A |
| Includes Mounting Hardware | Yes |
| Housing Material | Nylon |
| Mount Hole Center-to-Center Width | 2.2 in |
| Surge Protection | No |
| Housing Color | White |
| Contact Material | Brass |
| Power Contacts Material | Brass |
| Standard | NEMA |
| Top Material | Nylon |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Dielectric Voltage | Withstands 2,000V minimum |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Terminal Screw Material | #8-32 Brass, Multiple Drive |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Rating | 20A, 250V |
| NEMA No. | 6 to 20 R |
| Receptacle Grade | Heavy Duty Spec Grade |
| Certification | UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 |
| Face Style | Finder Groove |
| Device Color | White |
| Base Material | Polycarbonate |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Horsepower | 2 |
| Amperage | 20 A |
| Flange Style | Standard Non-Metallic |
| Terminal Accommodation | #18-#10 AWG copper stranded or solid conductor only |
| Flammability | UL 94 V2. |
| Mounting Screw Material | Brass-Nickel Plated |
| Current Interrupting | Certified for current interrupting at full rated current |
| Wattage | 5000 W |
| Application | Heavy Duty |
| Connectivity | Terminals |
| Amperage Rating | 20 A |
| Display Size | Standard Sized Product |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dimensions | 1.72 in x 2.56 in x 2.56 in |
| Item Type | Single |
| Length | 1.72 in |
| Material - Mounting Hardware | Screw Mounting |
| Series | Extra Heavy Duty |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Nema Rating | 6-20R |
| Dielectric Strength | Withstands 2,000V minimum |
| Wire Size | #18 AWG to #10 AWG |
| Current / Amperage Rating | 20 A |
| Voltage Rating Description | 250 V |
| Horsepower - Maximum | 2 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
