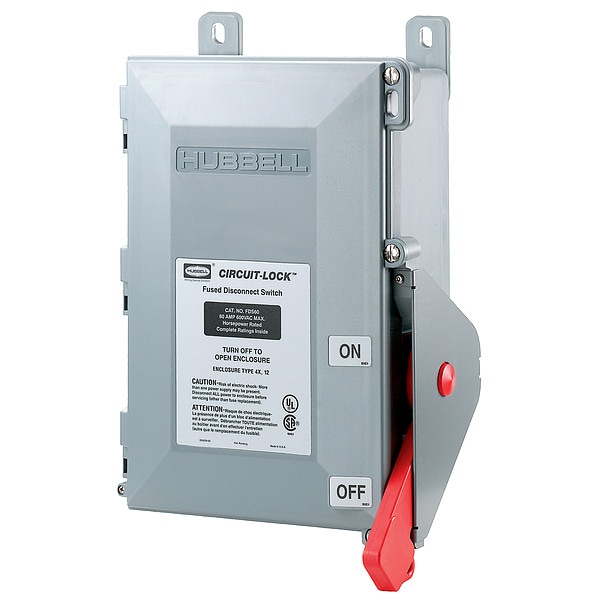

Interruptor de desconexión con fusible, 600V AC, NEMA 12K, 4, 4X
| Item | Enclosed Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy Duty |
| Amps | 60 |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 50 hp @ 600V AC |
| NEMA Enclosure Type | 4, 12K, 4X |
| IP Rating | IP66 |
| Material | Non-Metallic |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Fusible / Nonfusible | Fusible |
| Standards | UL/CSA |
| Width | 11-1/2 in |
| Neutral Assembly Included | No |
| Depth | 7.3 in |
| Height | 15 in |
| Includes | 1-1/4 in Hub |
| Handle Color | Red |
| Enclosure Type | Enclosed |
| Switch Type | Three Pole Complete Unit |
| For Fuse Class | Class J |
| Current Rating | 60 A |
| Standard Conduit Size | 1-1/4 in |
| NEMA Enclosure Rating | 12, 4X |
| Resistance Properties | Impact-Resistant, UV-Resistant |
| Environment | Indoor, Outdoor |
| For Environment | Indoor, Indoor Rated, Outdoor Rated |
| Horsepower @ 600V AC | 40 HP |
| Housing Material | Non-Metallic |
| Listing and Certifications | UL Listed and CSA Certified |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Amperage | 60 A |
| Package Quantity | 1 |
