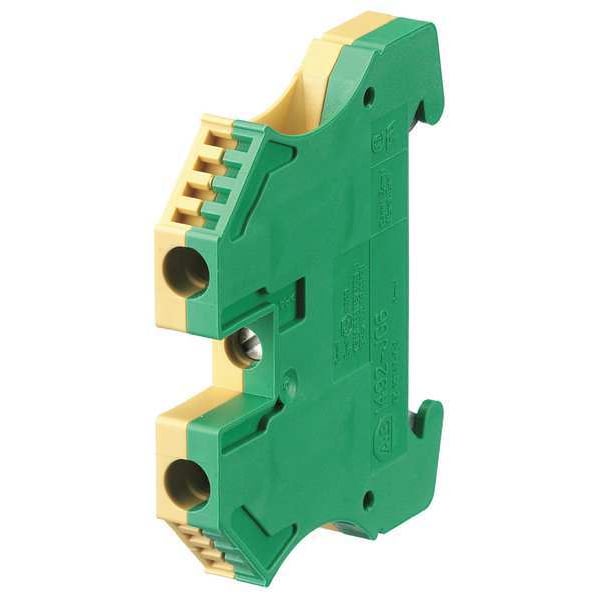

Bloque de tierra para interruptores de 20, 30 y 32 A.
| Item | Ground Block |
|---|---|
| Description/Special Features | Ground Block for 20, 30 and 32 Amp Switches |
| Depth | 2.42 in |
| Standards | CSA Certified Type 4, 4X, RoHS Compliant, UL 94 V-0 |
| Width | 2.42 in |
| Type | Accessory |
| UL 94 Flammability Rating | V-0 |
| Minimum Operating Temperature | -40 deg F |
| Special Features | Ground Block for 20, 30 and 32 Amp Switches |
| Overall Length | 2.42 in |
| Terminal Block Type | Grounding |
| RoHS Compliant | Yes |
| Current | 30 A |
| Compatible with Product Type | Pin and Sleeve Mechanical Interlocks |
| Maximum Operating Temperature | 167 deg F |
| Overall Width | 2.42 in |
| NEMA Enclosure Rating | 12K |
| For Disconnect Switch Size | 30 A |
| Mounting Mechanism | DIN Rail |
| Environment | Indoor/Outdoor |
| Features | Ground Block for 20, 30 and 32 Amp Switches |
| Compatible with Manufacturer Model Number | HBL330MI4W, HBL330MI6W, HBL330MI7W, HBL420MI12W, HBL420MI5W, HBL420MI7W, HBL420MI9W, HBL430MI12W, HBL430MI5W, HBL430MI7W, HBL430MI9W, HBL432MI3W, HBL530MI5W, HBL530MI7W, HBL530MI9W |
| Maximum Voltage | 600 V AC |
| Current Rating | 30 A |
| Application | Pin and Sleeve Mechanical Interlocks |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Item Type | Mechanical Interlock Replacement Ground Block |
| Phase | Three Phase |
| Horsepower - Maximum | 7.5 |
| Dielectric Strength | Withstands 2,000V minimum |
| Package Quantity | 1 |
