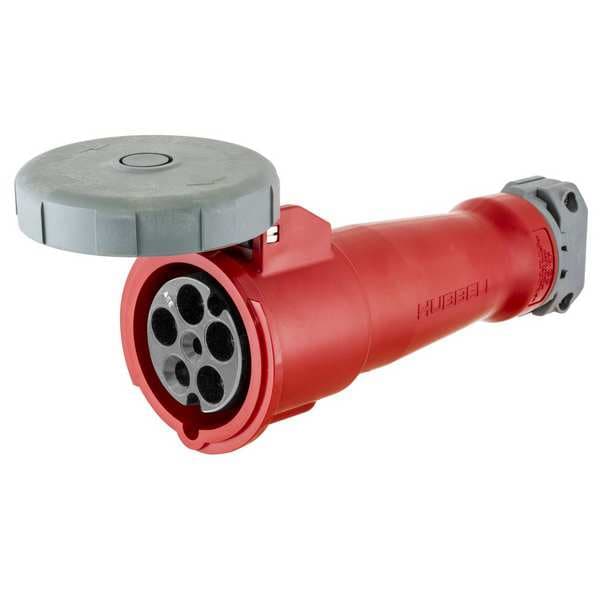

IEC Pin and Sleeve Connector, 100A, 480V
| Item - Plugs and Receptacles | Sleeve Connector, Watertight Pin |
|---|---|
| Body Material - Pin and Sleeve | Zytel 801 Nylon |
| Amps - Plugs and Receptacles | 100 |
| Voltage - Plugs and Receptacles | 277/480V AC |
| Color - Plugs and Receptacles | Red |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase - Electrical | 3 Y |
| Switch Rated | No |
| Grounding Style | IEC |
| Features | Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover |
| Item | Watertight Pin and Sleeve Connector |
| Amps | 100 |
| HP | 30 HP |
| Color | Red |
| Voltage | 277/480VAC |
| Body Material | Nylon |
| Phase | Three |
| Standards | CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033 |
| Outside Diameter | 5.06 in |
| Application | High Ampacity Connections |
| Overall Length | 13.14 in |
| Horsepower Rating | 40 HP |
| Voltage Rating | 277/480V AC |
| For Maximum Cable Diameter | 1.94 in |
| Minimum Wire Size | 3 AWG |
| Face Diameter | 4.71 in |
| Housing Color | Red |
| Market | Industrial |
| Reverse Service | No |
| Housing Material | PBT |
| Maximum Wire Size | 1/0 AWG |
| Maximum Operating Temperature | 75 Degrees C |
| For Minimum Cable Diameter | 1.065 in |
| Current Rating | 100 A |
| Housing Material Grade | Zytel 801 |
| UL 94 Flammability Rating | V-0 |
| Compatible with Series | HBL Heavy Duty |
| Shrouded | Yes |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Minimum Operating Temperature | -40 Degrees C |
| IP Rating | IP69K, IP68 |
| Power Indicating Light | No |
| Wire Connection Type | Screw Terminals |
| Cap Type | Spring-Loaded Cap |
| Grounding | Grounded |
| NEMA Enclosure Rating | 4X |
| Connection Orientation | Straight |
| Type | Watertight Connector Body |
| Amperage Rating | 100 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Style | Standard Service |
| Item Type | Standard |
| Series | HBL Heavy Duty |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard |
| Voltage Rating Description | 3 Phase Y 277/480 VAC |
| Conductor Range | #3 AWG to #1/0 AWG |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 100 A |
| Insulation | Insulated Body |
| Number Of Conductors | 5-Wire Grounding |
| Nema Rating | Non-NEMA |
| Industry Standard(s) | CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033 |
| Environmental Conditions | Watertight |
| Material - Mounting Hardware | Cord Mounted |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Package Quantity | 1 |
