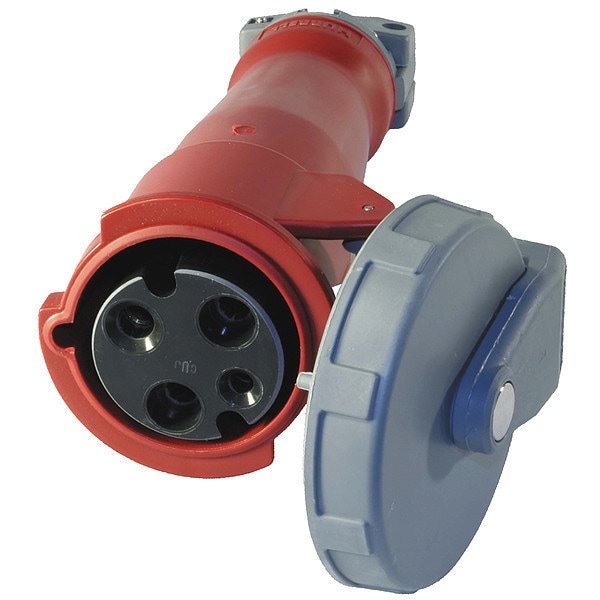

IEC Pin and Sleeve Connector, 60A, 480V
| Item - Plugs and Receptacles | Sleeve Connector, Watertight Pin |
|---|---|
| Body Material - Pin and Sleeve | Zytel 801 Nylon |
| Amps - Plugs and Receptacles | 60 |
| Voltage - Plugs and Receptacles | 480V AC |
| Color - Plugs and Receptacles | Red |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase - Electrical | 1 |
| Switch Rated | No |
| Grounding Style | IEC |
| Phase | Single |
| Amps | 60 |
| Features | Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover, Insulated Non-Metallic Housing |
| Color | Red |
| Standards | CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033 |
| Voltage | 480VAC |
| Body Material | Nylon |
| Item | Watertight Pin and Sleeve Connector |
| Overall Length | 10-3/4 in |
| Outside Diameter | 4.39 in |
| Maximum Wire Size | 2 AWG |
| NEMA Enclosure Rating | 4X |
| Minimum Wire Size | 8 AWG |
| Grounding | Grounded |
| Compatible with Series | HBL Heavy Duty |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 75 Degrees C |
| For Minimum Cable Diameter | 1/2 in |
| Connection Orientation | Straight |
| Housing Color | Red |
| Market | Industrial |
| Housing Material Grade | Zytel 801 |
| Current Rating | 60 A |
| Face Diameter | 4.15 in |
| For Maximum Cable Diameter | 1.45 in |
| Voltage Rating | 480V AC |
| Shrouded | Yes |
| Cap Type | Spring-Loaded Cap |
| Housing Material | PBT |
| Minimum Operating Temperature | -40 Degrees C |
| Horsepower Rating | 7.5 HP |
| Power Indicating Light | No |
| Reverse Service | No |
| IP Rating | IP69K, IP68 |
| UL 94 Flammability Rating | V-0 |
| Package Quantity | 1 |
