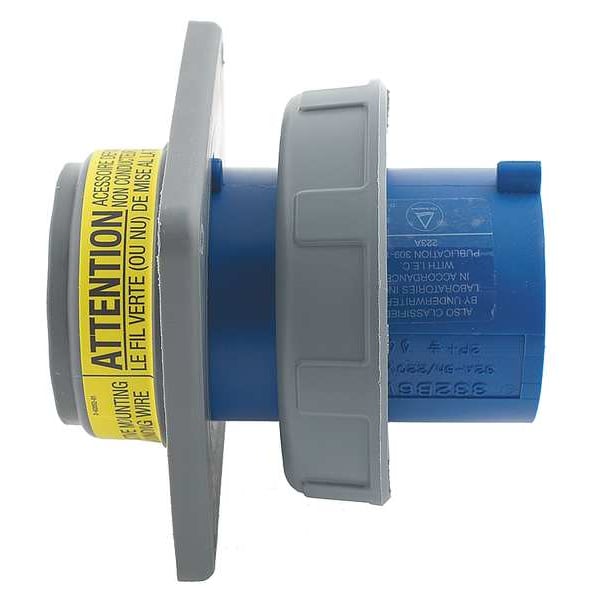

IEC Pin and Sleeve Inlet, 100A, 250V, Blue
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Inlet |
|---|---|
| Item | Watertight Pin and Sleeve Inlet |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Amps - Plugs and Receptacles | 100 |
| Voltage | 250VAC |
| Voltage - Plugs and Receptacles | 250V AC |
| Amps | 100 |
| Color - Plugs and Receptacles | Blue |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Grounding Style | IEC |
| Phase - Electrical | 3 |
| Color | Blue |
| HP | 10 HP |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Standards | CSA Certified LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2 |
| Body Material | Nylon |
| Minimum Wire Size | 3 AWG |
| Face Diameter | 3.44 in |
| Switch Rated | Yes |
| Voltage Rating | 250V AC |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Flange Type | Flanged |
| Market | Industrial |
| Shrouded | Yes |
| Minimum Operating Temperature | -40 deg C |
| Housing Color | Blue |
| Flange Diameter | 3.94 in |
| Maximum Operating Temperature | 75 deg C |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Maximum Wire Size | 1/0 AWG |
| Insulation Material | Thermoplastic |
| Housing Material Grade | Zytel 101 |
| Horsepower Rating | 15 HP |
| Housing Material | Polybutylene Terephthalate |
| Compatible with Series | HBL Heavy Duty |
| IP Rating | IP67 |
| Current Rating | 100 A |
| UL 94 Flammability Rating | V-0 |
| Retainer Material | High-Impact Thermoset |
| Gasket Material | Neoprene |
| Service | Standard |
| Flammability | UL 94 HB or Better |
| Product Type | Watertight IEC Device |
| Max. Voltage | 600 V |
| Flange Material | Zytel 101 Nylon |
| Cord Size | 3 to 1/0 AWG |
| Temp. Rise | 30°C |
| Dielectric Strength | 3,000 V AC |
| Screw Material | 300 Stainless Steel |
| Weight | 3.3 lb |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
