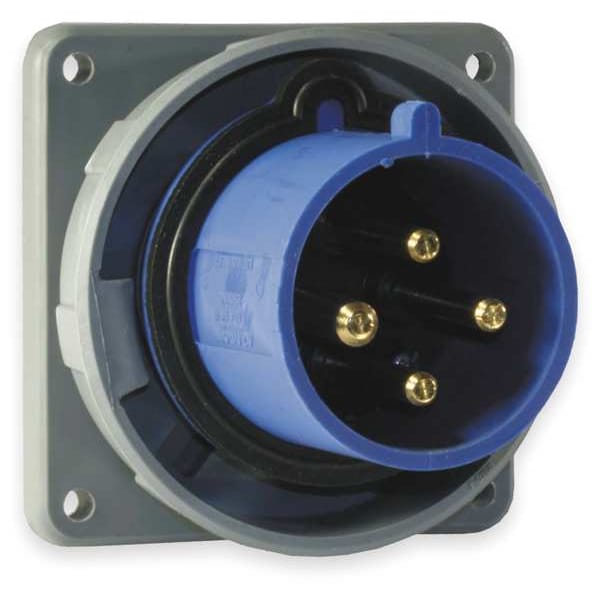

IEC Pin and Sleeve Inlet, 30A, 250V, Blue
| Item | Watertight Pin and Sleeve Inlet |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Inlet |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Type | Watertight Inlet |
| Amps - Plugs and Receptacles | 30 |
| Voltage | 250VAC |
| Voltage - Plugs and Receptacles | 250V AC |
| Amps | 30 |
| Color - Plugs and Receptacles | Blue |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Material | Thermoplastic |
| Grounding Style | IEC |
| Phase - Electrical | 3 |
| HP | 3 hp |
| Color | Blue |
| Standards | CSA Certified LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2 |
| Body Material | Nylon |
| Features | Thermoset Polyester Contact Carrier |
| Maximum Operating Temperature | 75 deg C |
| Grounding | Grounded |
| Shrouded | Yes |
| Flange Type | Flanged |
| Housing Material Grade | Zytel 101 |
| Voltage Rating | 250V AC |
| Market | Industrial |
| Current Rating | 30 A |
| UL 94 Flammability Rating | V-0 |
| Compatible with Series | HBL Heavy Duty |
| Wire Connection Type | Screw Terminals |
| Switch Rated | Yes |
| Minimum Operating Temperature | -40 deg C |
| Horsepower Rating | 7.5 HP |
| Pin & Sleeve Standards | IEC 60309 |
| Maximum Wire Size | 8 AWG |
| Face Diameter | 2.49 in |
| Housing Color | Blue |
| IP Rating | IP67 |
| Housing Material Type | Non-Metallic |
| Flange Diameter | 2.72 in |
| Minimum Wire Size | 12 AWG |
| Insulation Material | Thermoplastic |
| Housing Material | Polybutylene Terephthalate |
| Resistance Properties | Moisture Resistant, Watertight |
| Pin & Sleeve Standards` | IEC 60309 |
| Weight | 1.35 lb |
| Application | High Ampacity Watertight Connections |
| Wire Size | #12 AWG to #8 AWG |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Series | HBL Heavy Duty |
| Environmental Conditions | Watertight |
| Screw Material | 300 Stainless Steel |
| Retainer Material | High-Impact Thermoset |
| Gasket Material | Neoprene |
| Voltage Rating Description | 3 Phase 250 VAC |
| Current / Amperage Rating | 30 A |
| Temp. Rise | 30°C |
| Wattage | 7,500 |
| Connectivity | Pressure Terminal Screws |
| Operating Temp. | -40 to 75°C |
| Max. Voltage | 600 V |
| Insulation | Insulated Body |
| Product Type | Watertight IEC Device |
| Service | Standard |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Item Type | Single Flanged |
| Dielectric Strength | 3,000 V AC |
| Nema Rating | Non-NEMA |
| Display Size | Standard Sized Product |
| Flange Material | Zytel 101 Nylon |
| Flammability | UL 94 HB or Better |
| Cord Size | 12 to 8 AWG |
| Style | Standard Service |
| Package Quantity | 1 |
