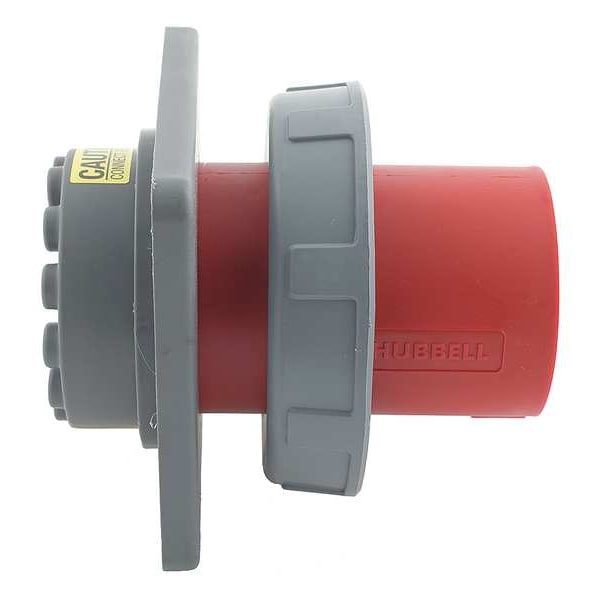

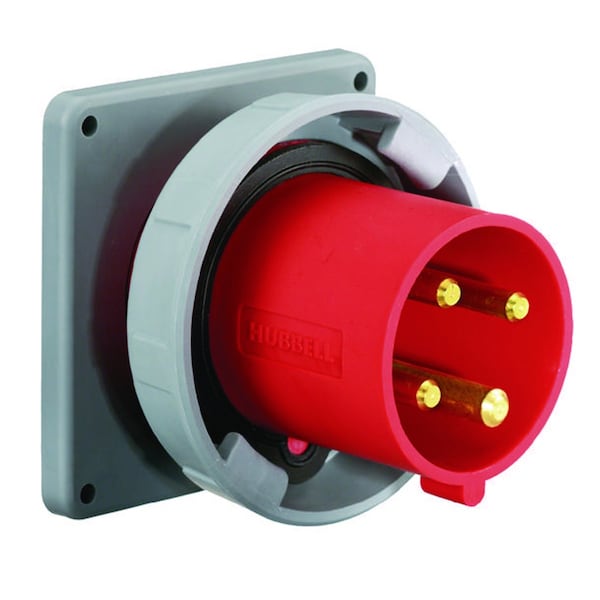

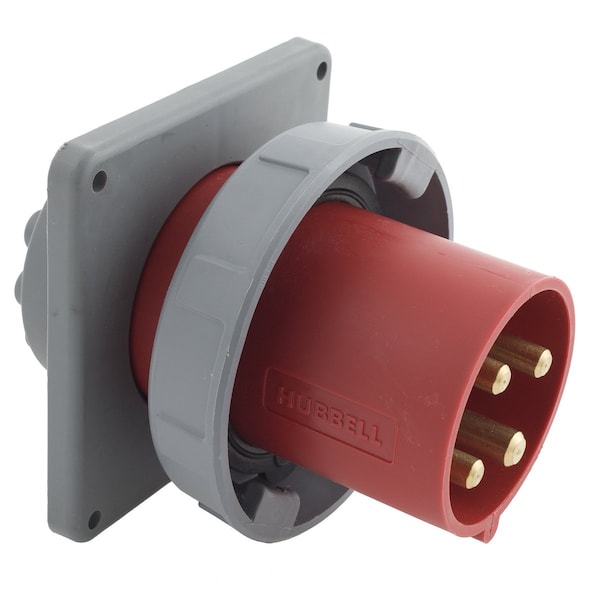

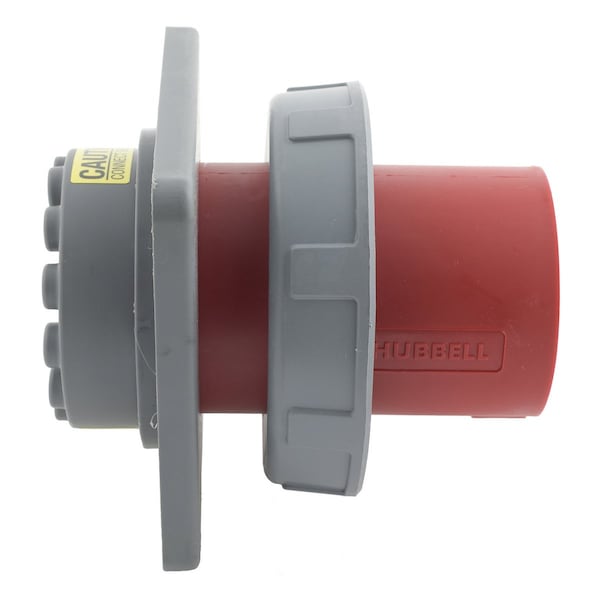

Entrada IEC Pin and Sleeve, 60A, 480V, Rojo
| Item | Watertight Pin and Sleeve Inlet |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Inlet |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Voltage | 480VAC |
| Amps - Plugs and Receptacles | 60 |
| Amps | 60 |
| Voltage - Plugs and Receptacles | 480V AC |
| Color - Plugs and Receptacles | Red |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Grounding Style | IEC |
| Phase - Electrical | 3 |
| Body Material | Nylon |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Color | Red |
| HP | 10 HP |
| Standards | CSA Certified LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2 |
| Horsepower Rating | 20 HP |
| Voltage Rating | 480V AC |
| Current Rating | 60 A |
| IP Rating | IP67 |
| Maximum Operating Temperature | 75 deg C |
| Housing Color | Red |
| UL 94 Flammability Rating | V-0 |
| Switch Rated | Yes |
| Face Diameter | 2.97 in |
| Minimum Operating Temperature | -40 deg C |
| Maximum Wire Size | 2 AWG |
| Shrouded | Yes |
| Compatible with Series | HBL Heavy Duty |
| Housing Material | Polybutylene Terephthalate |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Housing Material Grade | Zytel 101 |
| Minimum Wire Size | 8 AWG |
| Flange Type | Flanged |
| Flange Diameter | 3.46 in |
| Insulation Material | Thermoplastic |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Market | Industrial |
| Retainer Material | High-Impact Thermoset |
| Product Type | Watertight IEC Device |
| Service | Standard |
| Max. Voltage | 600 V |
| Screw Material | 300 Stainless Steel |
| Weight | 1.8 lb |
| Flammability | UL 94 HB or Better |
| Gasket Material | Neoprene |
| Flange Material | Zytel 101 Nylon |
| Dielectric Strength | 3,000 V AC |
| Cord Size | 8 to 2 AWG |
| Temp. Rise | 30°C |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
