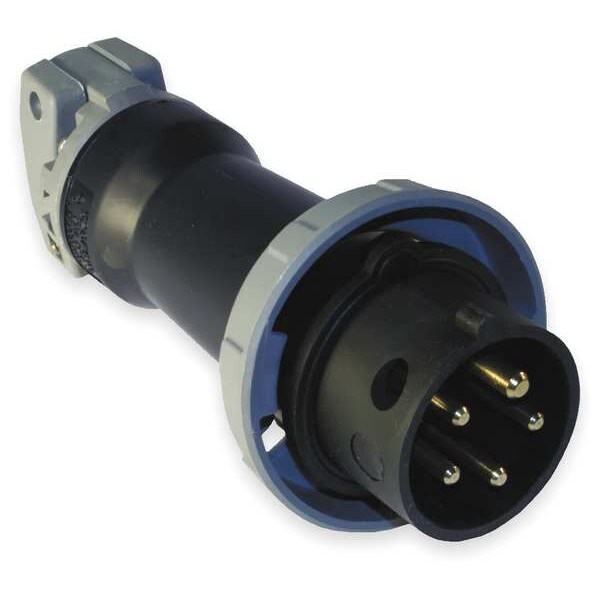

IEC Pin and Sleeve Plug, 4P, 5W, 20A, 600V
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
|---|---|
| Body Material - Pin and Sleeve | Zytel 801 Nylon |
| Amps - Plugs and Receptacles | 20 |
| Voltage - Plugs and Receptacles | 347/600V AC |
| Color - Plugs and Receptacles | Black |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase - Electrical | 3 Y |
| Switch Rated | No |
| Grounding Style | IEC |
| Amps | 20 |
| Item | IEC Pin and Sleeve Plug |
| Body Material | Zytel 801 Nylon |
| Phase | Three |
| Color | Black |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin, Solid One-Piece Pins Machined from Solid Brass |
| Standards | CSA Certified LR280C, IEC 60309-1, IEC 60309-2, UL 1682, UL 1686C2 |
| HP | 7 1/2 hp |
| Voltage | 347/600VAC |
| IP Rating | IP67 |
| For Minimum Cable Diameter | 0.33 in |
| Housing Color | Black |
| Power Indicating Light | No |
| Shrouded | Yes |
| Connection Orientation | Straight |
| Current Rating | 20 A |
| Grounding | Grounded |
| Minimum Wire Size | 14 AWG |
| Minimum Operating Temperature | -40 deg C |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Voltage Rating | 347/600V AC |
| Maximum Wire Size | 1 AWG |
| Reverse Service | No |
| Maximum Operating Temperature | 75 deg C |
| Horsepower Rating | 10 HP |
| NEMA Enclosure Rating | 4X |
| Housing Material | Non-Metallic |
| Cap Type | No Cap or Cover |
| For Maximum Cable Diameter | 0.83 in |
| UL 94 Flammability Rating | HB |
| Wire Connection Type | Screw Terminals |
| Overall Length | 7.64 in |
| Type | Watertight Plug |
| Material | Composite |
| Max. Voltage | 600 V |
| Hub Style | Standard |
| Display Size | Standard Sized |
| Application | High Ampacity Connections |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Nema Rating | Non-NEMA |
| Style | Standard Service |
| Industry Standard(s) | CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Standard UL1682 and UL 1686C2 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Watertight |
| Voltage Rating Description | 3 Phase Y 347/600 VAC |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Connectivity | Pressure Terminal Screws |
| Series | HBL Heavy Duty |
| Material - Mounting Hardware | Cord Mounted |
| Item Type | Male Plug |
| Cord Type | All Portable |
| Wire Size | #1 AWG to #250MCM |
| Package Quantity | 1 |
