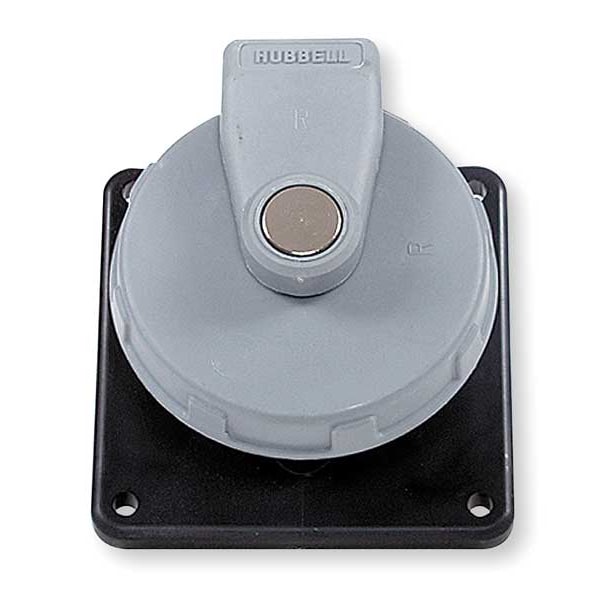

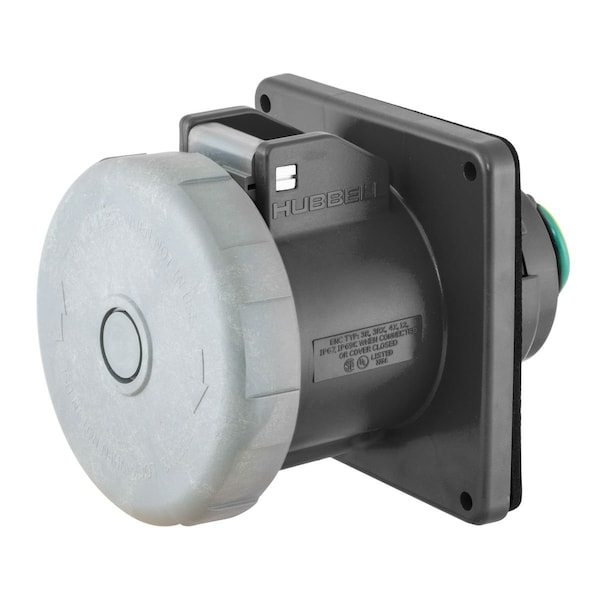

IEC Pin and Sleeve Receptacle, 100A, 600V
| Item | Watertight Pin and Sleeve Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Amps - Plugs and Receptacles | 100 |
| Voltage | 600VAC |
| Amps | 100 |
| Voltage - Plugs and Receptacles | 600V AC |
| Color - Plugs and Receptacles | Black |
| Number of Poles | 3 |
| Phase | Three |
| Number of Wires | 4 |
| Grounding Style | IEC |
| Phase - Electrical | 3 |
| Body Material | Nylon |
| HP | 30 hp |
| Color | Black |
| Switch Rated | No |
| Standards | CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94 |
| Features | Color Coded |
| Flange Type | Flanged |
| Cap Type | Spring-Loaded Cap |
| Connection Orientation | Straight |
| Minimum Operating Temperature | -40 deg C |
| Minimum Wire Size | 3 AWG |
| Number of Gangs | 1 |
| Market | Industrial |
| NEMA Enclosure Rating | 4X |
| Housing Color | Black |
| Maximum Operating Temperature | 75 deg C |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Horsepower Rating | 30 HP |
| Current Rating | 100 A |
| IP Rating | IP67 |
| Wire Connection Type | Screw Terminals |
| UL 94 Flammability Rating | HB |
| Housing Material | Thermoplastic |
| Face Diameter | 4.71 in |
| Power Indicating Light | No |
| Grounding | Grounded |
| Maximum Wire Size | 1/0 AWG |
| Housing Material Grade | Zytel 101 |
| Reverse Service | No |
| Shrouded | Yes |
| Voltage Rating | 600V AC |
| Cord Size | 3 to 1/0 AWG |
| Flammability | UL 94 HB or Better |
| Weight | 3.9 lb |
| Max. Voltage | 600 V |
| Screw Material | 300 Stainless Steel |
| Gasket Material | Neoprene |
| Dielectric Strength | 3,000 V AC |
| Product Type | Watertight IEC Device |
| Flange Material | Zytel 101 Nylon |
| Temp. Rise | 30°C |
| Service | Standard |
| Retainer Material | High-Impact Thermoset |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
