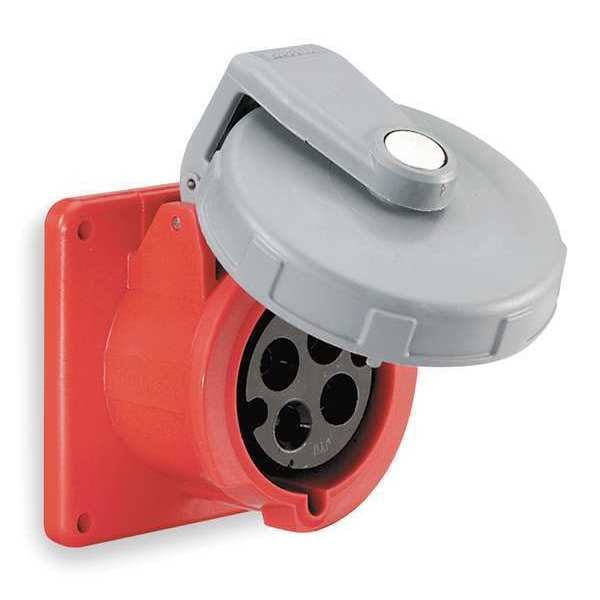

IEC Pin and Sleeve Receptacle, 125A, 415V
| Item | Watertight Pin and Sleeve Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Type | Receptacle with Pilot Sleeve |
| Amps - Plugs and Receptacles | 125 |
| Voltage | 240/415VAC |
| Voltage - Plugs and Receptacles | 240/415V AC |
| Amps | 125 |
| Color - Plugs and Receptacles | Red |
| Number of Poles | 4 |
| Phase | Single, Three |
| Number of Wires | 5 |
| Material | Thermoplastic |
| Grounding Style | IEC |
| Phase - Electrical | 3 Y |
| Color | Red |
| Body Material | Nylon |
| Features | Color Coded |
| Standards | CSA Certified LR280C, IEC 60309-2, UL 1682, UL IEC 60309-1 |
| Switch Rated | No |
| Housing Material Grade | Zytel 101 |
| Face Diameter | 4.71 in |
| Maximum Operating Temperature | 75 deg C |
| Market | Industrial |
| Voltage Rating | 200/346 to 240/415V AC |
| Power Indicating Light | No |
| Housing Material | Thermoplastic |
| Shrouded | Yes |
| Horsepower Rating | 30 HP |
| Housing Color | Red |
| Cap Type | Spring-Loaded Cap |
| Number of Gangs | 1 |
| Reverse Service | No |
| NEMA Enclosure Rating | 4X |
| Current Rating | 100/125 A |
| Connection Orientation | Straight |
| Grounding | Grounded |
| Maximum Wire Size | 1/0 AWG |
| Flange Type | Flanged |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 3 AWG |
| IP Rating | IP69K, IP68 |
| UL 94 Flammability Rating | V-0 |
| Minimum Operating Temperature | -40 deg C |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Service | Standard |
| Temp. Rise | 30°C |
| Max. Voltage | 600 V AC |
| Flange Material | Zytel 101 Nylon |
| Cord Size | 2 to 1/0 AWG |
| Flammability | UL 94 5VA, UL 94 V0 |
| Dielectric Strength | 3,000 V AC |
| Screw Material | 300 Stainless Steel |
| Gasket Material | Neoprene |
| Weight | 4.25 lb |
| Retainer Material | High-Impact Thermoset |
| UV Resistance | All Materials are UV Stabilized |
| Product Type | Watertight IEC Device |
| Operating Temp. | -40 to 75°C |
| Application | High Ampacity Watertight Connections |
| Environmental Conditions | Watertight |
| Series | HBL Heavy Duty |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability -V-0 Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Connectivity | Pressure Terminal Screws |
| Item Type | Single Flanged |
| Number Of Conductors | 5-Wire Grounding |
| Wire Size | #3 AWG to #1/0 AWG |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Nema Rating | Non-NEMA |
| Voltage Rating Description | 200/346-240/415 VAC |
| Material - Mounting Hardware | Screw Mounting |
| Style | Standard Service |
| Display Size | Standard Sized Product |
| Insulation | Insulated Body |
| Industry Standard(s) | CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed to UL1682 |
| Package Quantity | 1 |
