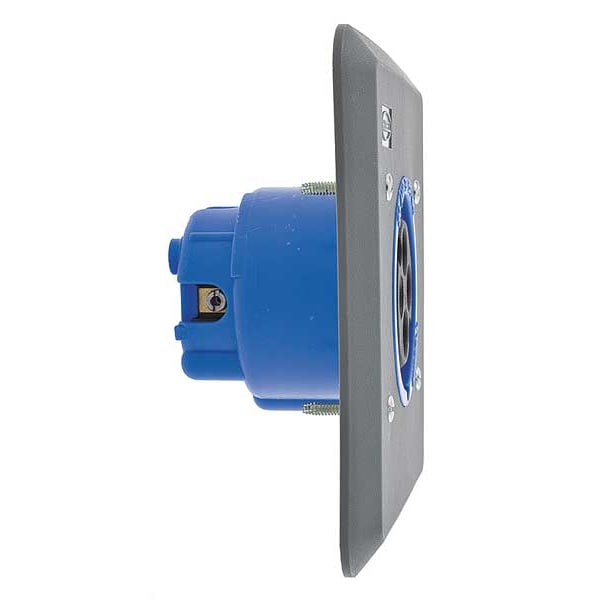

IEC Pin and Sleeve Receptacle, 30A, 250V
| Item | Pin and Sleeve Receptacle |
|---|---|
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Type | Receptacle |
| Amps - Plugs and Receptacles | 30 |
| Voltage | 250VAC |
| Amps | 30 |
| Voltage - Plugs and Receptacles | 250V AC |
| Color - Plugs and Receptacles | Blue |
| Receptacle Type | IEC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Material | Thermoplastic |
| Grounding Style | IEC |
| Phase - Electrical | 3 |
| Standards | CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94 |
| Features | Color Coded, Split Sleeves with Self-Adjusting Stainless Steel Springs |
| Body Material | Zytel 101 Nylon |
| Color | Blue |
| Switch Rated | No |
| Maximum Operating Temperature | 75 deg C |
| Grounding | Grounded |
| Voltage Rating | 250V AC |
| UL 94 Flammability Rating | HB |
| Minimum Wire Size | 12 AWG |
| Maximum Wire Size | 8 AWG |
| Cap Type | Spring-Loaded Cap |
| NEMA Enclosure Rating | 4X |
| Power Indicating Light | No |
| Connection Orientation | Straight |
| IP Rating | IP22 |
| Wire Connection Type | Screw Terminals |
| Market | Industrial |
| Housing Material | Thermoplastic |
| Shrouded | Yes |
| Face Diameter | 4.71 in |
| Number of Gangs | 1 |
| Reverse Service | No |
| Current Rating | 30 A |
| Housing Material Grade | Zytel 101 |
| Minimum Operating Temperature | -40 deg C |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Watertight |
| Flange Type | Flanged |
| Housing Color | Blue |
| Wire Size | 12 to 10 AWG |
| Operating Temp. Range | -40 to 75° C |
| Application | High Ampacity Watertight Connections |
| Display Size | Standard Sized Product |
| Current / Amperage Rating | 30 A |
| Amperage Rating | 30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Watertight |
| Item Type | Single-Low Profile |
| Voltage Rating Description | 3 Phase 250 VAC |
| Series | Low Profile |
| Nema Rating | Non-NEMA |
| Wattage | 7500 |
| Style | Standard Service |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interruption at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 250V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP22 Suitability Environmental - Operating Temperatures - Max. Continuous +75°C Min. -40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American convention |
| Connectivity | Pressure Terminal Screws |
| Package Quantity | 1 |
