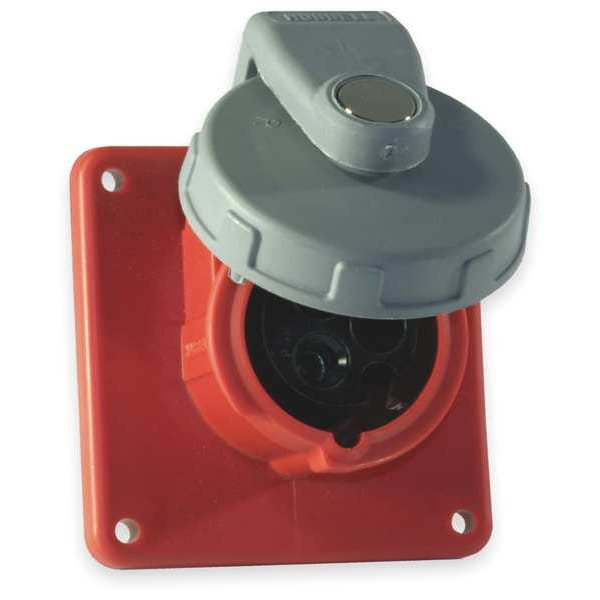

IEC Pin and Sleeve Receptacle, 30A, 480V
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
|---|---|
| Item | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Type | Watertight Receptacle |
| Voltage | 480VAC |
| Amps - Plugs and Receptacles | 30 |
| Amps | 30 |
| Voltage - Plugs and Receptacles | 480V AC |
| Color - Plugs and Receptacles | Red |
| Number of Poles | 2 |
| Phase | Single |
| Number of Wires | 3 |
| Material | Thermoplastic |
| Grounding Style | IEC |
| Phase - Electrical | 1 |
| Color | Red |
| Switch Rated | No |
| Body Material | Nylon |
| Features | Color Coded |
| Standards | CSA Certified C22.2 No. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1 |
| Grounding | Grounded |
| UL 94 Flammability Rating | HB |
| Wire Connection Type | Screw Terminals |
| Reverse Service | No |
| NEMA Enclosure Rating | 4X |
| Face Diameter | 3.6 in |
| Horsepower Rating | 7.5 HP |
| Housing Color | Red |
| Number of Gangs | 1 |
| Shrouded | Yes |
| Power Indicating Light | No |
| Voltage Rating | 480V AC |
| Housing Material | Thermoplastic |
| Cap Type | Spring-Loaded Cap |
| Market | Industrial |
| Housing Material Grade | Zytel 101 |
| Flange Type | Flanged |
| Current Rating | 30 A |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 75 deg C |
| Connection Orientation | Straight |
| IP Rating | IP67 |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Maximum Wire Size | 8 AWG |
| Minimum Wire Size | 12 AWG |
| Service | Standard |
| Gasket Material | Neoprene |
| Max. Voltage | 600 V |
| Retainer Material | High-Impact Thermoset |
| Screw Material | 300 Stainless Steel |
| Flange Material | Zytel 101 Nylon |
| Dielectric Strength | 3,000 V AC |
| Flammability | UL 94 HB or Better |
| Product Type | Watertight IEC Device |
| Cord Size | 12 to 8 AWG |
| Temp. Rise | 30°C |
| Weight | 1.35 lb |
| Operating Temp. | -40 to 75°C |
| Application | High Ampacity Watertight Connections |
| Item Type | Single Flanged |
| Nema Rating | Non-NEMA |
| Environmental Conditions | Watertight |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Electrical - Temperature Rise - Max. 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Connectivity | Pressure Terminal Screws |
| Wire Size | #12 AWG to #8 AWG |
| Style | Standard Service |
| Material - Mounting Hardware | Screw Mounting |
| Display Size | Standard Sized Product |
| Amperage Rating | 30 A |
| Wattage | 14,400 |
| Industry Standard(s) | CSA StandardC22.2 No. 182.1 UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032 |
| Series | HBL Heavy Duty |
| Voltage Rating Description | 480 VAC |
| Current / Amperage Rating | 30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
