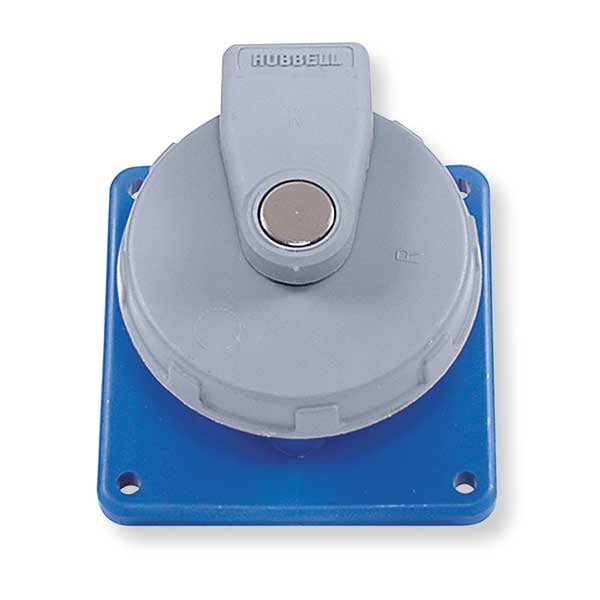

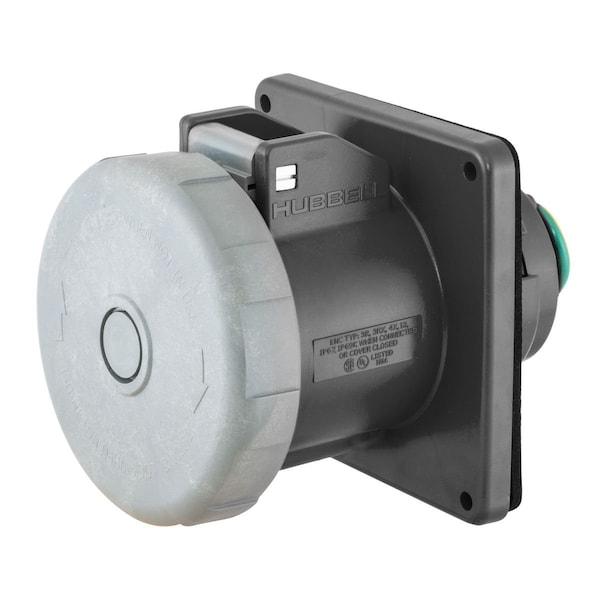

IEC Pin and Sleeve Receptacle, 60A, 600V
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Receptacle |
|---|---|
| Item | Watertight Pin and Sleeve Receptacle |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Voltage | 600VAC |
| Amps - Plugs and Receptacles | 60 |
| Amps | 60 |
| Voltage - Plugs and Receptacles | 600V AC |
| Color - Plugs and Receptacles | Black |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Grounding Style | IEC |
| Phase - Electrical | 3 |
| Color | Black |
| Standards | CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94 |
| Features | Color Coded |
| HP | 15 HP |
| Body Material | Nylon |
| Switch Rated | No |
| Flange Type | Flanged |
| Market | Industrial |
| Voltage Rating | 600V AC |
| Horsepower Rating | 15 HP |
| Minimum Operating Temperature | -40 deg C |
| Maximum Wire Size | 2 AWG |
| Face Diameter | 4.15 in |
| Housing Color | Black |
| IP Rating | IP67 |
| Housing Material | Thermoplastic |
| UL 94 Flammability Rating | HB |
| Number of Gangs | 1 |
| Power Indicating Light | No |
| Reverse Service | No |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Housing Material Grade | Zytel 101 |
| Minimum Wire Size | 8 AWG |
| Cap Type | Spring-Loaded Cap |
| NEMA Enclosure Rating | 4X |
| Current Rating | 60 A |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Maximum Operating Temperature | 75 deg C |
| Shrouded | Yes |
| Connection Orientation | Straight |
| Temp. Rise | 30°C |
| Screw Material | 300 Stainless Steel |
| Dielectric Strength | 3,000 V AC |
| Flange Material | Zytel 101 Nylon |
| Product Type | Watertight IEC Device |
| Service | Standard |
| Cord Size | 8 to 2 AWG |
| Weight | 2.45 lb |
| Retainer Material | High-Impact Thermoset |
| Flammability | UL 94 HB or Better |
| Gasket Material | Neoprene |
| Max. Voltage | 600 V |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
