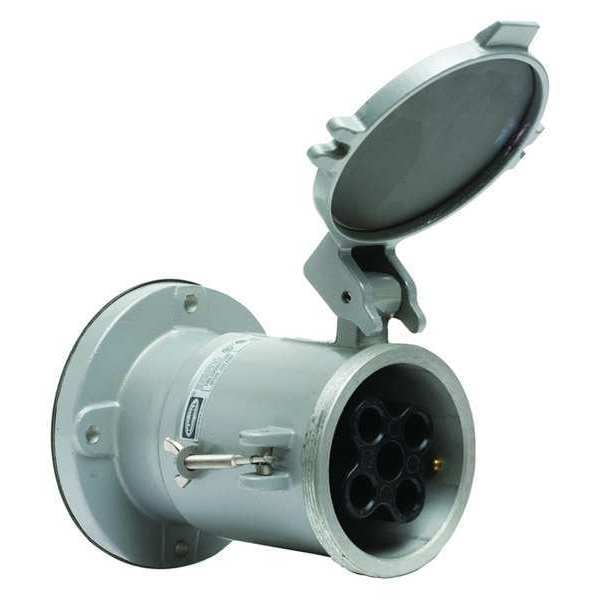

Insulgrip Pin Sleeve Device 200Amp 4P 5W
| Item | Insulgrip Pin Sleeve Device 200Amp 4P 5W |
|---|---|
| Type | Receptacle |
| Body Material - Pin and Sleeve | Epoxy Painted Aluminum |
| Voltage | 250V DC/600V AC |
| Amps - Plugs and Receptacles | 200 A |
| Number of Poles | 4 |
| Phase | Three |
| Number of Wires | 5 |
| Material | Thermoplastic |
| Grounding Style | Style 1 |
| Corrosion Resistant | No |
| Standards | CSA Certified to CSA Spec. C22.2 No. 182.1, CSA Certified Type 4X, UL 1682, UL Listed |
| Features | UV Stabilized |
| Housing Material | Aluminum |
| Compatible with Series | Insulgrip |
| UL 94 Flammability Rating | V-0 |
| Voltage Rating | 600V AC/250V DC |
| Flange Type | Flanged |
| NEMA Enclosure Rating | 4X |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Power Indicating Light | No |
| Number of Ground Connections | 5 |
| Maximum Wire Size | 4/0 AWG |
| Shrouded | Yes |
| Minimum Wire Size | 2 AWG |
| Includes Mounting Hardware | Yes |
| Market | Industrial |
| Number of Gangs | 1 |
| Current Rating | 200 A |
| Maximum Operating Temperature | 75 deg C |
| Housing Material Finish | Epoxy Painted |
| Cap Type | Spring-Loaded Cap |
| Housing Color | Gray, Black |
| Reverse Service | No |
| Flange Material | Thermoplastic |
| Switch Rated | No |
| Resistance Properties | Impact Resistant, Moisture Resistant |
| For Environment | Dusty and Dirty |
| Wire Connection Type | Screw Terminals |
| Minimum Operating Temperature | -40 deg C |
| NEMA Rating | 3, 4, 4X |
| IP Rating | IP66 |
| Wire Size | 1 to 250 KCMIL |
| Operating Temp. Range | -40 to 75° C |
| Current / Amperage Rating | 200 A |
| Environmental Conditions | Watertight |
| Amperage Rating | 200 A |
| Connectivity | Pressure Terminal Screws |
| Application | Metallic with Nylon Shroud |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 120000 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard Sized Product |
| Series | UL 1686 Class 1 Insulgrip® |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Style | Standard Service,Style 1 Grounding |
| Item Type | Single Flanged-Reversed |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682 |
| Voltage Rating Description | 600V AC/250V DC |
| Package Quantity | 1 |
