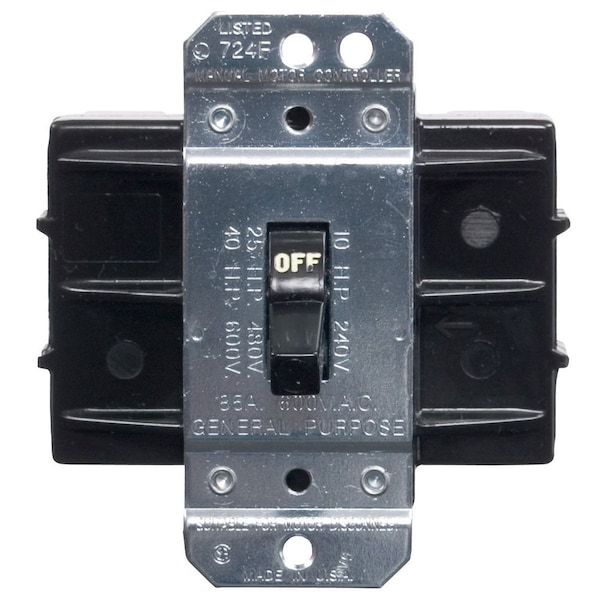

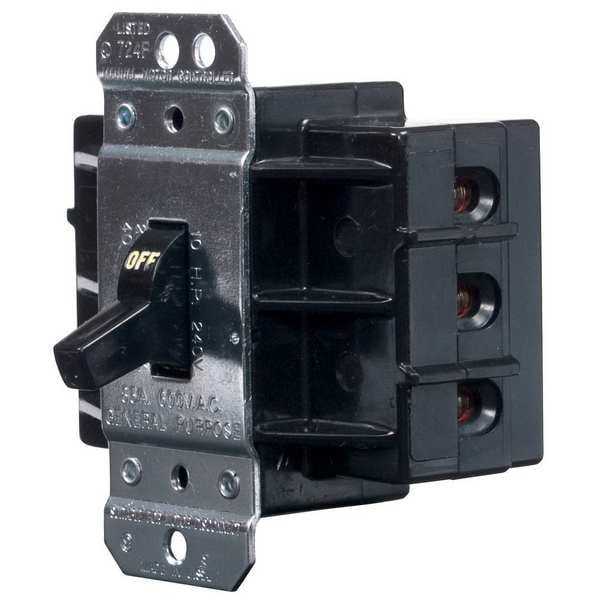

Interruptor de motor manual, 85A, 600VCA, 2 polos
| Operator | Switch |
|---|---|
| Enclosure NEMA Rating | No Enclosure |
| Depth | 1.58 in |
| Number of Required Thermals | Not Applicable |
| Amps AC | 85 A |
| Height | 3.28 in |
| Width | 3.56 in |
| Item | Manual Motor Switch |
| Starter Type | NEMA Style |
| Number of Poles | 2 |
| Max. Voltage | 600 V AC |
| Pilot Light | No |
| Standards | CSA C22.2 No.14 LR-46186, UL 508 E70402 |
| Phase Loss Sensitivity | No |
| HP @ 1 Phase - 230V | 10 hp |
| Description/Special Features | Back and Side Wired |
| Number of Gangs | Not Applicable |
| Wiring Style | Back and Side Wired |
| Circuit-Lock Poles | 2 Pole |
| Product Type | circuitlock-tn |
| Listing and Certifications | UL Listed and CSA Certified |
| Circuit-Lock Voltage Rating | 600V AC Max |
| Circuit-Lock Amperage | 85 A |
| Circuit-Lock Wiring Style | Side Wired |
| Circuit-Lock Enclosure | None |
| Circuit-Lock Toggle Style | Standard |
| Circuit-Lock Item | AC Manual Motor Controllers |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Diameter | 0.2 in |
| Hub Type | Not Applicable |
| Overall Height | 3.18 in |
| IP Rating | Not Applicable |
| Maximum Operating Temperature | 167 deg F |
| Overall Width | 3.18 in |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Three Phase - 480V AC | Not Rated |
| Horsepower @ Three Phase - 240V AC | Not Rated |
| Horsepower @ Three Phase - 600V AC | Not Rated |
| Hazardous Location Specification | Not Applicable |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Single Phase - 240V AC | 10 HP |
| Phase | Single |
| Current AC | 85 A |
| Overall Depth | 3.8 in |
| Includes Pilot Light | No |
| Series | Circuit-Lock |
| Horsepower @ Three Phase - 208V AC | Not Rated |
| Maximum Voltage Rating | 600 V AC |
| Contact Material | Stainless Steel |
| Mounting Hole Distance - Height | 3.28 in |
| Mounting Style | Surface |
| Starter Style | NEMA |
| Hub Diameter | Not Applicable |
| Package Quantity | 1 |
