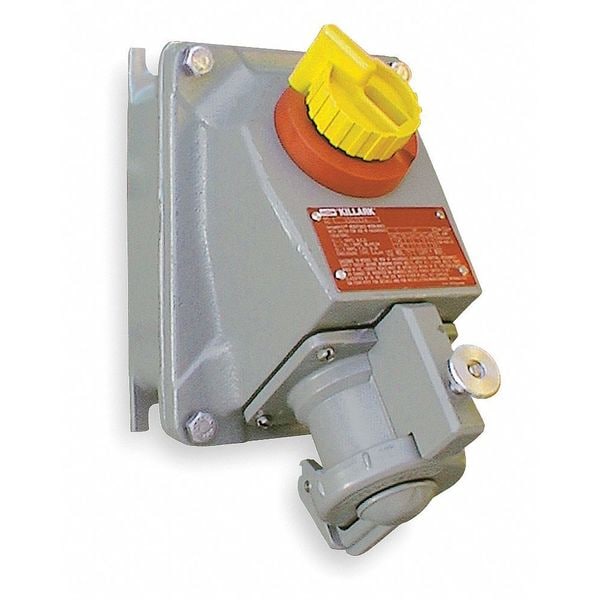

Este receptáculo peligroso de clavija y enchufe de 2W 3P 60A 600VAC de Hubbell Killark es ideal para entornos peligrosos. Cumple con las normativas de seguridad y ofrece una conexión segura y confiable.
| Item | Mechanical Interlock Device |
|---|---|
| Voltage | 600V AC |
| NEMA Rating | 4X |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Circuit Breaker Amp Rating | Not Applicable |
| HP | 20 HP |
| Amps | 60 |
| Material | Copper-Free Aluminum |
| Screws | Stainless Steel |
| Phase | Single |
| Standards | Class I, Div. 1 & 2, Groups B,C,D / Class I, Zones 1 & 2, Groups IIB+H2, IIA / Class II, Div. 1 & 2, Groups F,G / Class III / NEMA 3, 7 (B,C,D), 9 (F,G) / UL (E91049 & E53660) CSA (LR14667) |
| Hub | 1-1/2 in |
| Fused / Nonfused | Nonfused |
| Type | Hazardous Location |
| Finish | Polyester |
| Includes | 1-1/2" Close-Up Plug |
| Use With | 2NVP7 (VP6385) |
| Hub Size | 1-1/2 in |
| Viewing Window | No |
| NEMA Enclosure Rating | 9FG, 3, 4X, 4, 7BCD |
| Circuit Breaker | No |
| Enclosure Lock Type | Padlockable |
| Hub Type | Feed Through |
| Reverse Service | No |
| Housing Material Finish | Polyester Finish, Epoxy Coated |
| Voltage Rating | 600V AC |
| Locking Handle | Yes |
| Current Rating | 60 A |
| Overall Width | 5-3/4 in |
| Includes Mounting Hardware | Yes |
| Resistance Properties | Corrosion Resistant |
| Horsepower Rating | 0.3333 HP |
| Fuse Type | Not Applicable |
| Overall Height | 10-1/2 in |
| Fuse Protection | Non-Fused |
| Maximum Wire Size | 4 AWG |
| Electrical Connection Type | Pin, Sleeve |
| Disconnect Switch | Yes |
| Grounding | Grounded |
| Housing Material | Copper Free Aluminum |
| Hub Diameter | 1 in |
| Circuit Breaker Type | Not Applicable |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Overall Depth | 9-3/4 in |
| Amperage Rating | 60 A |
| Hub Pattern | Feed-Thru |
| Receptacle Type | Mechanically Interlocked |
| Series | VSQ |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
| Package Quantity | 1 |
