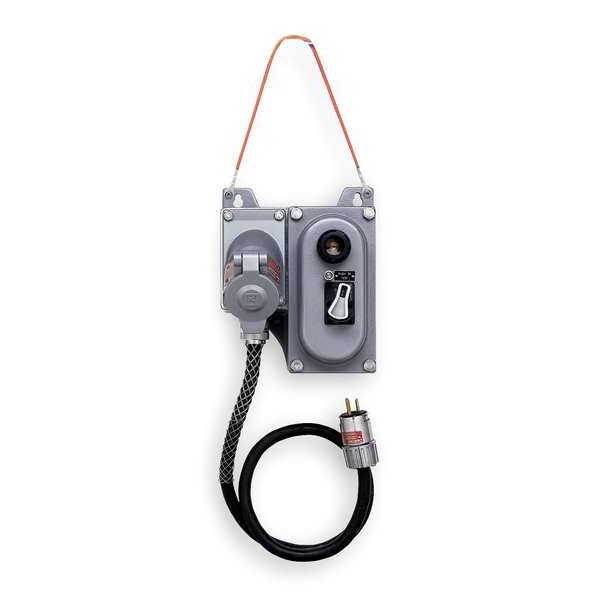

Este receptáculo GFCI peligroso de 3W 2P 20A y 125VAC modelo 5-20R de Hubbell Killark proporciona seguridad adicional en entornos peligrosos.
| Item | Hazardous Location GFCI |
|---|---|
| Voltage | 125V AC |
| Number of Wires | 3 |
| Number of Poles | 2 |
| HP | 1 HP |
| Amps | 20 |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| NEC Cord Designation | SOOW |
| NEMA Plug Configuration | 5-20P |
| Color | Gray |
| Gauge/Conductor | 12/3 |
| Cord Length | 3 ft |
| Reset Type | Manual |
| NEMA Receptacle Configuration | 5-20R |
| Voltage Rating | 125VAC |
| Standards | UL, CSA, Class I, Div. 2, Groups B, C, D; Class I, Zone 2, Groups IIB+H2, IIA; Class II, Div. 1 & 2, Groups F, G; Class III, Div. 1 & 2 |
| Self-Testing | No |
| Portable GFCI Receptacle Cord Length | No Cord |
| Range of Lengths | 3 ft. |
| Enclosure Rating | NEMA 3 |
| Plug Configuration - Ext. Cords and Power Strips | Straight, No Swivel |
| Hz | 60 Hz |
| Number of Outlets | 1 |
| Wire Size | 12 AWG |
| Max. Amps | 20 A |
| Housing Material | Copper Free Aluminum |
| Plug Cord Length | 3 ft |
| Plug Style | Straight |
| Number of Conductors | 3 |
| Trade Designation | SOOW |
| Plug Configuration | NEMA 5-20P |
| Receptacle Configuration | NEMA 5-20R |
| Receptacle Cord Length | No Cord |
| Material of Construction | Copper-Free Aluminum |
| Hazardous Rating(s) | Class 1, Division 2, Groups B, C, D;Class I, Zone 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
| UL File Number | E91049 |
| CSA File Number | LR14667 |
| Series | UGFI |
| Amperage Rating | 20 |
| Package Quantity | 1 |
