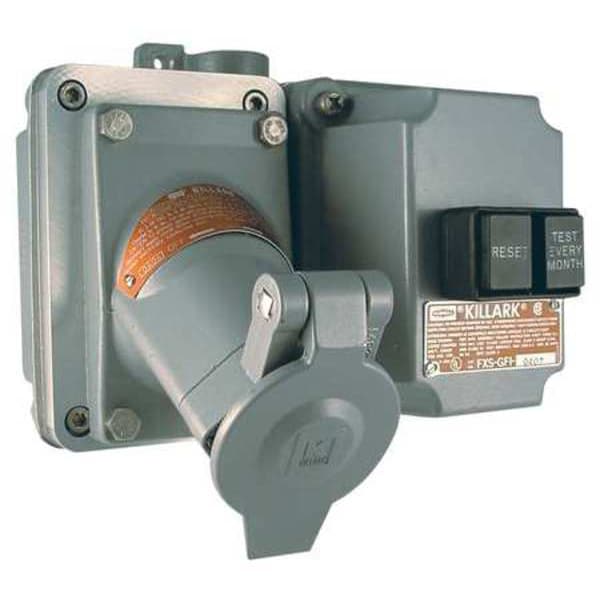

El receptáculo GFCI para ubicaciones peligrosas 3W 2P 20A 120VAC 5-20R de Hubbell Killark ofrece seguridad eléctrica en entornos peligrosos. Cumple con los estándares de seguridad y es fácil de instalar.
| Item | GFCI Receptacle |
|---|---|
| Voltage | 120V AC |
| NEMA Rating | 3, 7C, 7D, 9E, 9F, 9G |
| Number of Wires | 3 |
| Number of Poles | 2 |
| NEMA Type | 5-20R |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Finish | Polyester |
| Screws | Stainless Steel |
| Hz | 60 |
| Standards | UL 943 |
| Feed-Thru Hub (In.) | 3/4 |
| Hub Diameter | 3/4 in |
| Horsepower Rating | Not Applicable |
| Hub Type | Feed Through |
| NEMA Enclosure Rating | 9FG, 3, 7CD |
| For Environment | Hazardous Location |
| Number of Gangs | 2 |
| Resistance Properties | Weather Resistant |
| NEMA Receptacle Configuration | 5-20R |
| Features | Factory-Sealed |
| Voltage Rating | 125V AC |
| GFCI | Yes |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Current Rating | 20 A |
| Circuit Breaker | Yes |
| Housing Material Finish | Epoxy Polyester Coated |
| Phase | 1 |
| Includes Mounting Hardware | Yes |
| Housing Material | Copper Free Aluminum |
| Amperage Rating | 20 |
| Hazardous Rating(s) | Class 1, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
| Hub Size | 3/4 in |
| Series | UGRGF |
| CSA File Number | LR11714 |
| Package Quantity | 1 |
