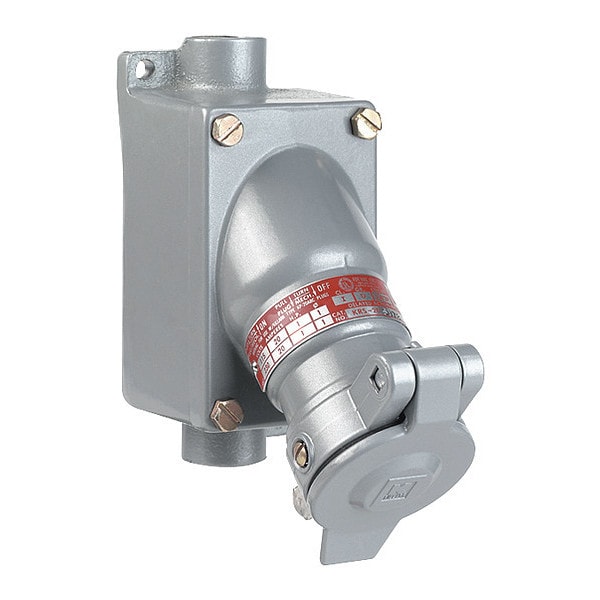

Este receptáculo a prueba de explosiones de Hubbell Killark es de 3W, 2P y 20A con una entrada de 120VAC. Está diseñado para entornos peligrosos y ofrece una alta seguridad y durabilidad.
| Item | Pin and Sleeve Receptacle |
|---|---|
| Voltage | 120V AC |
| NEMA Rating | 3, 7, 9 |
| Number of Wires | 2 |
| Number of Poles | 3 |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Finish | Powder Coated |
| Screws | Stainless Steel |
| Mounting Box | 1 Gang, Copperfree Aluminum |
| Hz | 60 |
| Hub Style | Dead-end |
| Hub Size | 1 in |
| Standards | CSA Certified LR14667, UL E23572 |
| Wire Connection Type | Wire Leads |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D |
| Flange Type | Flanged |
| Shrouded | Yes |
| Grounding Style | Style 2 |
| Voltage Rating | 115/230V AC |
| Hub Diameter | 1 in |
| Housing Material | Copper Free Aluminum |
| IP Rating | Not Rated |
| Phase | Single |
| NEMA Enclosure Rating | 7CD |
| Housing Material Finish | Powder Coated |
| Number of Gangs | 1 |
| Hub Type | Dead End |
| Cap Type | Flip-Up Cap |
| Power Indicating Light | No |
| Housing Color | Gray |
| Includes Mounting Hardware | Yes |
| Current Rating | 20 A |
| Connection Orientation | Straight |
| Reverse Service | No |
| Package Quantity | 1 |
