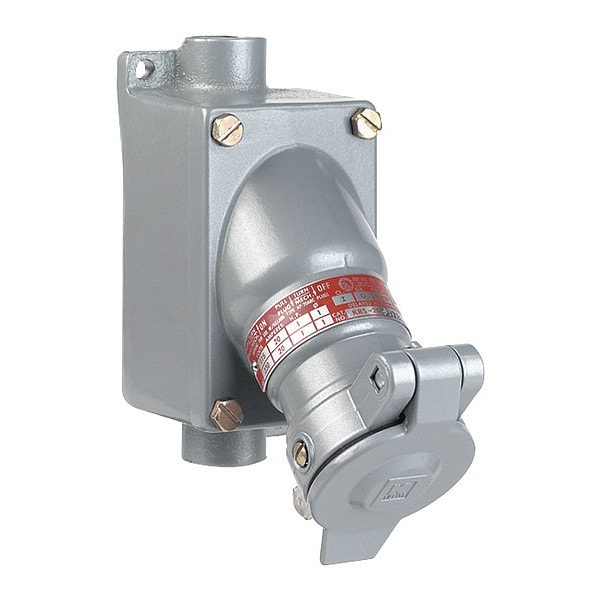

Este receptáculo peligroso de 3W 2P 20A de Hubbell Killark proporciona una conexión segura de 120VAC en entornos peligrosos. Fabricado con los más altos estándares de calidad y seguridad.
| Item | Pin and Sleeve Receptacle |
|---|---|
| Voltage | 120V AC |
| NEMA Rating | 3, 4, 4X |
| Number of Wires | 2 |
| Number of Poles | 3 |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Hz | 60 |
| Finish | Powder Coated |
| Standards | CSA Certified LR14667, UL E23572 |
| Hub Style | Feed-Thru |
| Feed-Thru Hub (In.) | 1/2 |
| Mounting Box | 1 Gang, Copperfree Aluminum |
| Hub Size | 3/4 in |
| Screws | Stainless Steel |
| Reverse Service | No |
| Power Indicating Light | No |
| Housing Material Finish | Powder Coated |
| Includes Mounting Hardware | Yes |
| Grounding Style | Style 2 |
| Hub Type | Dead End |
| Housing Color | Gray |
| Cap Type | Flip-Up Cap |
| NEMA Enclosure Rating | 7CD |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D |
| Number of Gangs | 1 |
| Housing Material | Copper Free Aluminum |
| Phase | Single |
| IP Rating | Not Rated |
| Wire Connection Type | Wire Leads |
| Hub Diameter | 3/4 in |
| Shrouded | Yes |
| Voltage Rating | 115/230V AC |
| Connection Orientation | Straight |
| Current Rating | 20 A |
| Flange Type | Flanged |
| Amperage Rating | 20 A |
| Operating Cycles | 10,000 operations |
| Hub Pattern | Feed-Thru |
| Special Features | Factory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage. |
| Width | 3-3/4 in |
| Receptacle Type | Delayed Action |
| Each - Width | 3-3/4 in |
| Color | Gray |
| Length | 6.88 in |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA |
| Type | Pin, Sleeve |
| Series | KR |
| Application | KR Series receptacles are suitable: in hazardous locations due to the presence of flammable vapors or gases;where a heavy duty plug and receptacle is necessary;where a connection is required for portable or movable equipment such as tools, motors, hand |
| Size | 6.88 in x 3-3/4 in x 5-1/2 in |
| Dimensions | 6.88 in x 3.75 in x 5.5 in |
| Height | 5-1/2 in |
| Factory Sealed | Factory Sealed |
| Package Quantity | 1 |
