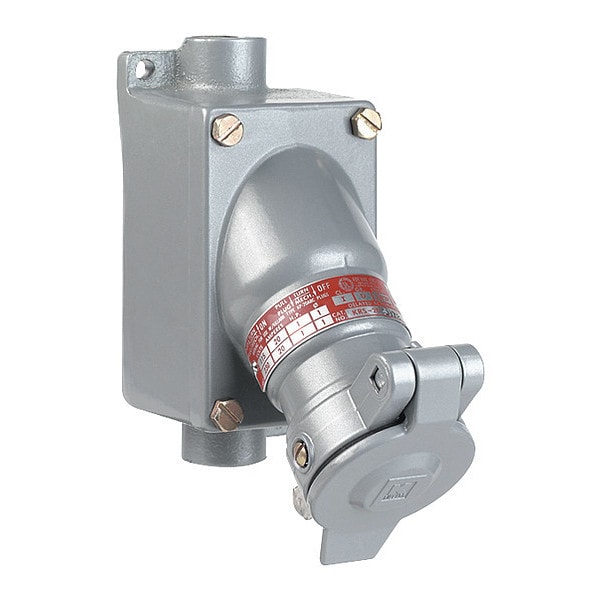

3W 2P 20A Hazardous Pin & Sleeve Receptacle 120VAC
| Item | Pin and Sleeve Receptacle |
|---|---|
| Voltage | 120V AC |
| NEMA Rating | 3, 7, 9 |
| Number of Wires | 2 |
| Number of Poles | 3 |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Hub Size | 3/4 in |
| Finish | Powder Coated |
| Hub Style | Feed-Thru |
| Mounting Box | 1 Gang, Copperfree Aluminum |
| Hz | 60 |
| Standards | CSA Certified LR14667, UL E23572 |
| Screws | Stainless Steel |
| Feed-Thru Hub (In.) | 3/4 |
| Housing Material | Copper Free Aluminum |
| NEMA Enclosure Rating | 7CD |
| Housing Material Finish | Powder Coated |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D |
| Wire Connection Type | Wire Leads |
| Number of Gangs | 1 |
| Phase | Single |
| Voltage Rating | 115/230V AC |
| Hub Diameter | 3/4 in |
| Includes Mounting Hardware | Yes |
| Shrouded | Yes |
| Flange Type | Flanged |
| Connection Orientation | Straight |
| IP Rating | Not Rated |
| Current Rating | 20 A |
| Cap Type | Flip-Up Cap |
| Grounding Style | Style 2 |
| Reverse Service | No |
| Power Indicating Light | No |
| Housing Color | Gray |
| Hub Type | Dead End |
| Receptacle Type | Delayed Action |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA |
| Amperage Rating | 20 A |
| Factory Sealed | Factory Sealed |
| Type | Pin, Sleeve |
| Series | KR |
| Hub Pattern | Feed-Thru |
| Package Quantity | 1 |
