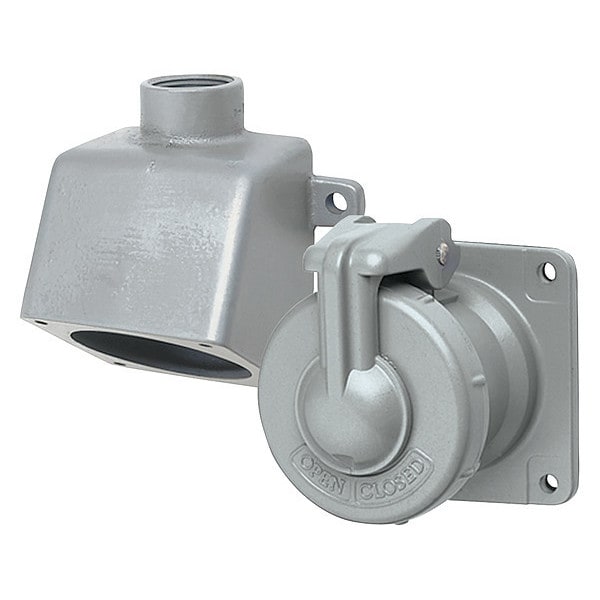

3W 2P 20A Hazardous Pin & Sleeve Receptacle 600VAC/250VDC
| Item | Pin and Sleeve Receptacle |
|---|---|
| Voltage | 600V AC/250V DC |
| NEMA Rating | 3, 7, 9 |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Hub Style | Dead-end |
| Standards | CSA Certified, UL Listed |
| Hz | 50/60 |
| Hub Size | 1/2 in |
| Mounting Box | Copperfree Aluminum |
| Finish | Powder Coated |
| Screws | Stainless Steel |
| Phase | Three |
| Reverse Service | No |
| Housing Color | Gray |
| Cap Type | Flip-Up and Screw Cap |
| Polarized | Yes |
| Connection Orientation | Straight |
| Power Indicating Light | No |
| Shrouded | Yes |
| Flange Type | Flanged |
| Housing Material | Copper Free Aluminum |
| Voltage Rating | 600V AC/250V DC |
| Market | Industrial |
| Wire Connection Type | Spring Clamp Terminals |
| Grounding | Grounded |
| For Location | Indoor, Outdoor |
| For Environment | Hazardous Location, Corrosive, Cold, Wet |
| Housing Material Finish | Polyester Finish, Baked Powder Epoxy Coated |
| Features | Boxes Come with a Green Grounding Screw |
| NEMA Enclosure Rating | 4X |
| Grounding Style | Style 1 |
| Contact Material | Brass |
| IP Rating | Not Rated |
| Number of Gangs | 1 |
| Hazardous Location Specification | Not Applicable |
| Hub Diameter | 3/4 in |
| Current Rating | 30 A |
| Series | VersaMate |
| Frequency Rating | 50-400 Hz |
| Amperage Rating | 30 A |
| Back Box Type | DEAD END |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Style | Style I |
| Type | Pin, Sleeve |
| Package Quantity | 1 |
