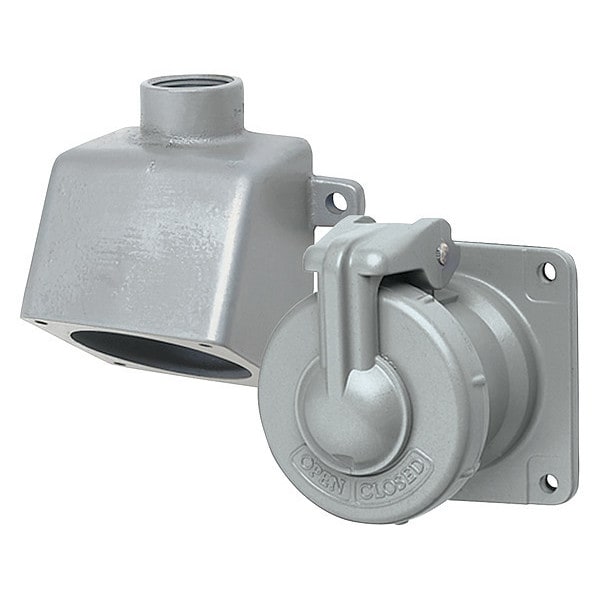

Este receptáculo peligroso de clavija y enchufe de 3W 2P 20A está diseñado para resistir entornos peligrosos y ofrece una conexión segura y confiable. Con capacidad para 600VAC/250VDC, es ideal para aplicaciones industriales exigentes.
| Item | Pin and Sleeve Receptacle |
|---|---|
| Voltage | 600V AC/250V DC |
| NEMA Rating | 3, 7, 9 |
| Number of Wires | 2 |
| Number of Poles | 3 |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Standards | CSA Certified LR14667, UL E23572 |
| Mounting Box | Copperfree Aluminum |
| Finish | Powder Coated |
| Screws | Stainless Steel |
| Hub Size | 1/2 in |
| Hz | 50/60 |
| Hub Style | Dead-end |
| Power Indicating Light | No |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D |
| Housing Material | Copper Free Aluminum |
| Reverse Service | No |
| Current Rating | 20 A |
| NEMA Enclosure Rating | 7CD |
| Housing Color | Gray |
| Shrouded | Yes |
| Hub Diameter | 1/2 in |
| Number of Gangs | 1 |
| Flange Type | Flanged |
| Connection Orientation | Straight |
| Cap Type | Flip-Up Cap |
| Phase | Three |
| IP Rating | Not Rated |
| Housing Material Finish | Powder Coated |
| Grounding Style | Style 2 |
| Voltage Rating | 115/230V AC |
| Wire Connection Type | Wire Leads |
| Style | Style I |
| Frequency Rating | 50-400 Hz |
| Back Box Type | DEAD END |
| Series | VersaMate |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Type | Pin, Sleeve |
| Amperage Rating | 30 A |
| Package Quantity | 1 |
