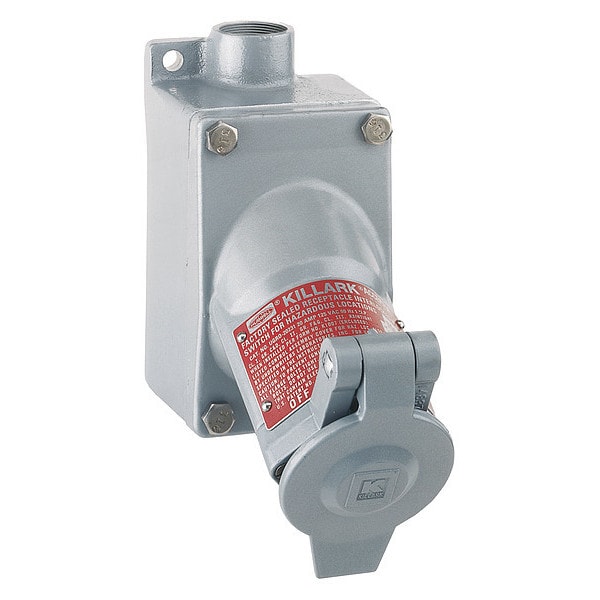

Este receptáculo para ubicaciones peligrosas de Hubbell Killark cuenta con 3 cables, 3 polos, 30 amperios y 240VAC. Modelo 6-20R, referencia UGR2-20232QW.
| Item | Receptacle |
|---|---|
| Voltage | 240V AC |
| NEMA Rating | 3, 4, 4X |
| Number of Wires | 3 |
| Number of Poles | 2 |
| NEMA Type | 6-20R |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Finish | Powder Coated |
| Hub Size | 3/4 in |
| Mounting Box | 1 Gang, Copperfree Aluminum |
| Screws | Stainless Steel |
| Standards | CSA Certified, UL Listed |
| Hz | 60 |
| Hub Style | Dead-end |
| Overall Depth | 5.8 in |
| Housing Color | Gray |
| Resistance Properties | Corrosion Resistant, Dust Ignition Proof, Explosion Proof |
| Wiring Method | Back |
| Current Rating | 20 A |
| Number of Gangs | 1 |
| Grade | General Use |
| Connection Orientation | Straight |
| Housing Material Finish | Powder Coated |
| Housing Material | Aluminum, Copper Free |
| Polarized | No |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Phase | Single |
| GFCI | No |
| AFCI | No |
| NEMA Receptacle Configuration | 6-20R |
| Hub Type | Dead End |
| Voltage Rating | 250V AC |
| NEMA Enclosure Rating | 9FG, 3, 7CD |
| Receptacle Type | Single |
| Mount Type | Surface |
| Cover Type | Flip-Up Cover |
| Factory Sealed | Factory Sealed |
| Series | UGR |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
| Each - Width | 3.13 in |
| Width | 3.13 in |
| Amperage Rating | 20 A |
| Type | Straight Blade |
| Hub Pattern | Dead-End |
| Package Quantity | 1 |
