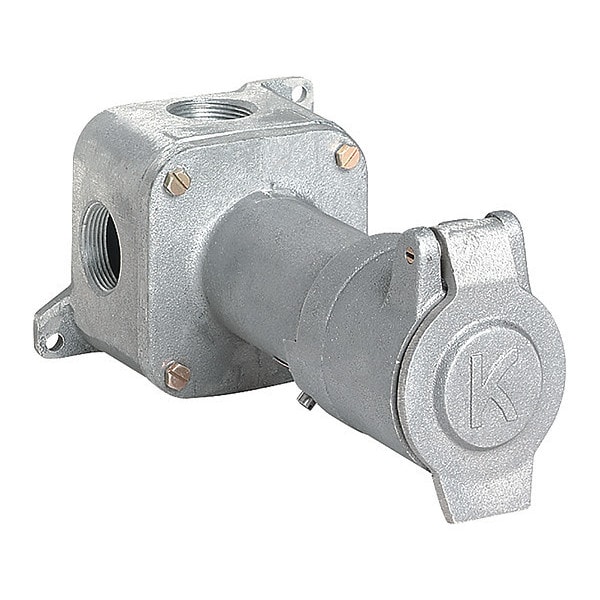

Este receptáculo peligroso de clavija y receptáculo es ideal para aplicaciones de 115/230VAC. Conecta de manera segura y confiable en entornos peligrosos.
| Item | Explosion Proof Receptacle |
|---|---|
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Height | 5.63 in |
| Number Of Wires | 4 |
| Type | Pin, Sleeve |
| Series | KR |
| Each - Width | 7 in |
| Nema Rating | 7 (C, D) |
| Amperage Rating | 60 A |
| Hub Pattern | Feed-Thru |
| Receptacle Type | Delayed Action |
| Factory Sealed | Factory Sealed |
| Application | KR Series receptacles are suitable: in hazardous locations due to the presence of flammable vapors or gases;where a heavy duty plug and receptacle is necessary;where a connection is required for portable or movable equipment such as tools, motors, hand |
| Dimensions | 15.75 in x 7 in x 5.63 in |
| Color | Gray |
| Size | 15-3/4 in x 7 in x 5.63 in |
| Special Features | Factory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage. |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA |
| Number Of Poles | 3 |
| Width | 7 in |
| Hub Size | 1 in |
| Length | 15-3/4 in |
| Package Quantity | 1 |
