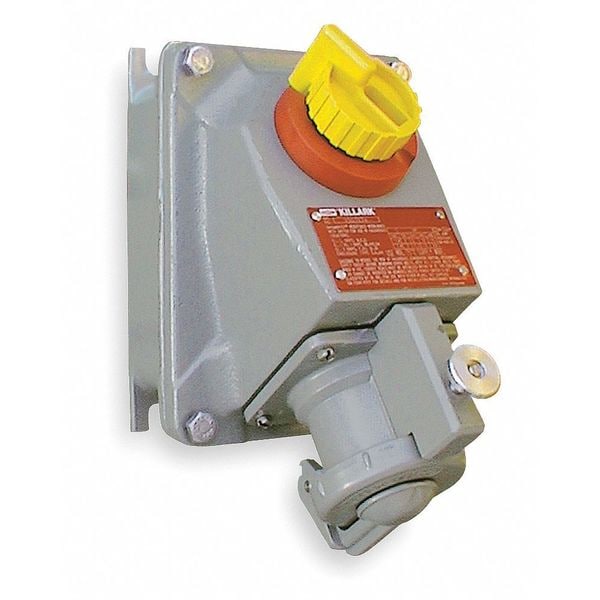

3W 4P 60A Hazardous Pin & Sleeve Receptacle 600VAC
| Item | Mechanical Interlock Device |
|---|---|
| Voltage | 600V AC |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Circuit Breaker Amp Rating | Not Applicable |
| HP | 30 HP |
| Amps | 60 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Fused / Nonfused | Fused |
| Includes | 1 1/2 in Close-Up Plug |
| Type | NEMA 4X |
| Use With | 5HJ62 (VP6485) |
| Viewing Window | No |
| Hub | 1-1/2 in |
| Phase | Three |
| Reverse Service | No |
| Maximum Wire Size | 4 AWG |
| Enclosure Lock Type | Padlockable |
| Fuse Type | Not Applicable |
| Overall Width | 5-3/4 in |
| Overall Height | 10-1/2 in |
| Resistance Properties | Corrosion Resistant |
| Includes Mounting Hardware | Yes |
| Circuit Breaker | No |
| Circuit Breaker Type | Not Applicable |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Overall Depth | 9-3/4 in |
| Fuse Protection | Non-Fused |
| Housing Material | Copper Free Aluminum |
| Hub Type | Feed Through |
| Current Rating | 60 A |
| NEMA Enclosure Rating | 9FG, 3, 4X, 4, 7BCD |
| Horsepower Rating | 0.3333 HP |
| Hub Diameter | 1 in |
| Housing Material Finish | Polyester Finish, Epoxy Coated |
| Disconnect Switch | Yes |
| Locking Handle | Yes |
| Grounding | Grounded |
| Electrical Connection Type | Pin, Sleeve |
| Voltage Rating | 600V AC |
| Each - Width | 13-3/4 in |
| Series | VWSQ |
| Width | 13-3/4 in |
| Receptacle Type | Mechanically Interlocked |
| Nema Rating | 3, 4, 4X, 7(B, C, D), 9(F, G) |
| Amperage Rating | 60 A |
| Hub Size | 1 in |
| Hub Pattern | Feed-Thru |
| Package Quantity | 1 |
