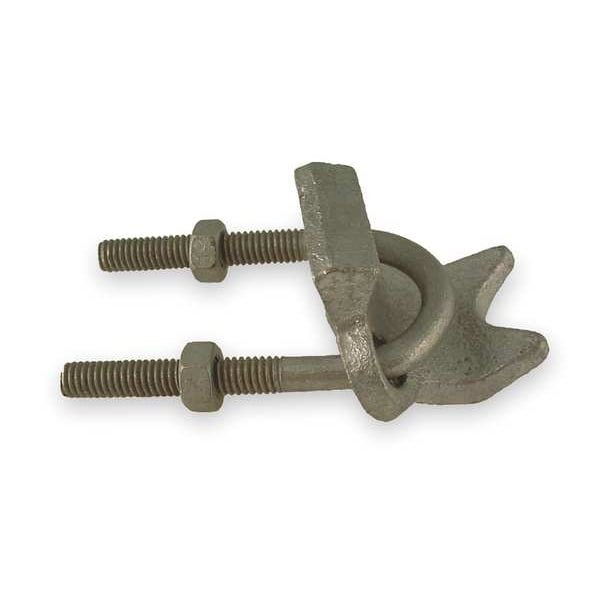

Clamp, EMT; IMC; RMC Use, 2-1/2 in, Malleable Iron, Galvanized
| Item | Clamp |
|---|---|
| Nominal/Conduit Pipe | 2-1/2 in |
| Material | Malleable Iron |
| Finish | Galvanized |
| For Use With | EMT; IMC; RMC |
| Sub-Category | Clamps |
| Width | 3 in |
| Length | 4 in |
| Flange Thickness | 1-3/64 in to 3-29/64 in |
| Height | 1/8 in |
| Standards | UL Listed |
| Type | Right Angle Conduit Clamp |
| Overall Length | 4 in |
| Color | Glossy gray |
| Number of Pieces | 1 |
| Includes | Hex Nuts, U-Bolts |
| Length (Straight Wireway) | 3.3 in |
| Beam Flange Thickness | 1-3/64 to 3-29/64 in |
| Overall Height | 1/8 in |
| Overall Width | 3 in |
| Mounting Style | Clamp On |
| Series | RACC |
| Carton Quantity | 10 |
| Application | Designed to secure rigid metal conduit, IMC or EMT across, parallel or perpendicular to channel, beam, and angle supports. |
| Special features | Heavy duty U-bolts, hex bolts, and hex nuts. Capable of supporting heavy loads. |
| UL File Number | E213669 |
| Package Net Weight | 1.03 |
| Each - Width | 3 in |
| Dimensions | 4 in x 3 in x 0.1 in |
| Hub Size | 2.5 |
| Package Quantity | 1 |
