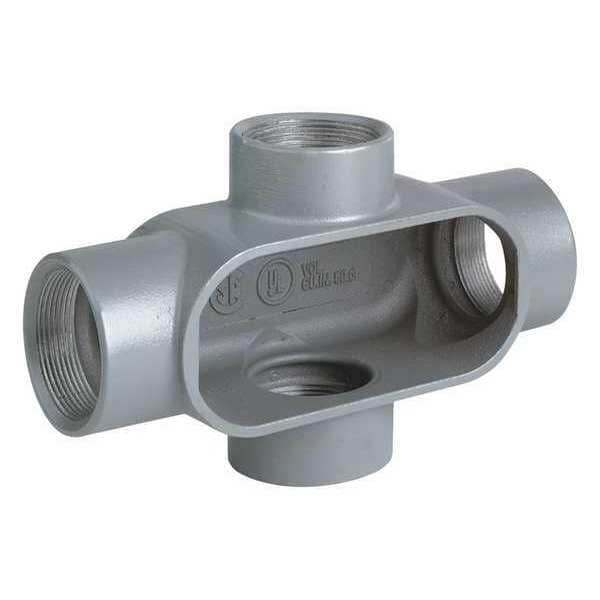

Conduit Body, 11.0 cu. in. Capacity
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | X |
| Material | Iron |
| Conduit Outlet Body Capacity | 11 cu in |
| Conduit Outlet Body Hub Size | 1 in |
| Includes | Set Screw Hubs |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Set Screw Hubs |
| Standards | CSA, UL |
| Color | Gray |
| Conduit Outlet Hub Size | 1 in |
| Back Type | Flat |
| Form | Form 7 |
| Body Style | X |
| Hazardous Location Rating | Class I Zone 2, Class I, Division 2 |
| Compatible Conduit Trade Size | 1 in |
| Shape | X |
| Body Capacity | 11 cu in |
| Connection Type | Threaded |
| Overall Length | 8 in |
| Compatible Conduit Type | RMC, IMC |
| Thread Gender | Female |
| Thread Size | 1 in |
| Connection Orientation | Multi-Angle |
| Body Type | Conduit Outlet Body |
| Number of Hubs | 4 |
| Overall Height | 3 in |
| Compatible Cover | 370G |
| Thread Type | NPT |
| Finish | Powder Coated |
| Hub Style | Threaded |
| Trade Size | 1 in |
| Overall Width | 5 in |
| Width | 5 in |
| Length | 8 in |
| Height | 3 in |
| Hub Pattern | X |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| UL File Number | E3397 |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| CSA File Number | LR11852 |
| Each - Width | 5 in |
| Type | Conduit Body |
| Finish Type | Powder Epoxy Paint |
| Dimensions | 8 in x 5 in x 3 in |
| Package Quantity | 1 |
