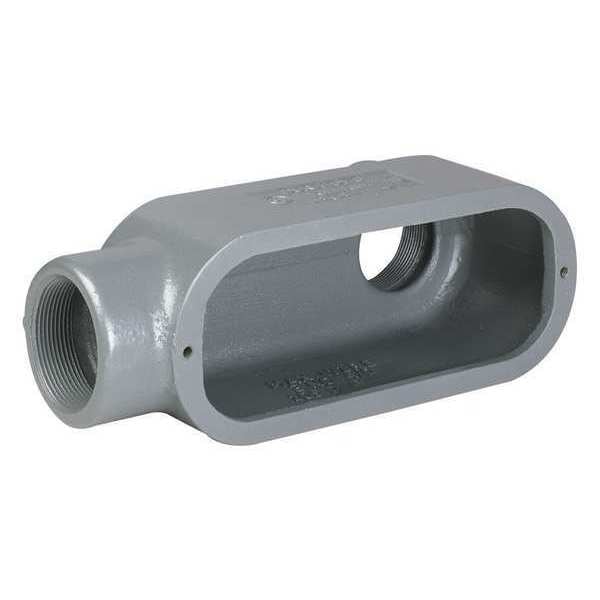

Conduit Body, Flat Back, LB Body, 6" Hub
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 2-1/2 in |
| Series | Duraloy 8 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LB |
| Material | Iron |
| Conduit Outlet Body Capacity | 200 cu in |
| Conduit Outlet Body Hub Size | 2-1/2 in |
| Includes | Set Screw Hubs |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Set Screw Hubs |
| Color | Gray |
| Standards | CSA, UL |
| Conduit Outlet Hub Size | 2-1/2 in |
| Back Type | Flat |
| Form | Form 8 |
| Body Style | LB |
| Body Type | Conduit Outlet Body |
| Connection Orientation | 90 Degrees |
| Body Capacity | 200 cu in |
| Thread Gender | Female |
| Overall Length | 14 in |
| Hub Style | Threaded |
| Overall Height | 7 in |
| Compatible Cover | 880F, 880S |
| Number of Hubs | 2 |
| Thread Type | NPT |
| Overall Width | 7 in |
| Trade Size | 2-1/2 in |
| Finish | Powder Coated |
| Connection Type | Threaded |
| Thread Size | 2 1/2 in |
| Compatible Conduit Type | RMC, IMC |
| Compatible Conduit Trade Size | 2-1/2 in |
| Hazardous Location Rating | Class I, Division 2, Class I, Zone 2 |
| Shape | LB |
| Length | 14 in |
| Width | 7 in |
| Height | 7 in |
| Hub Pattern | LB |
| Finish Type | Powder Epoxy Paint |
| CSA File Number | LR11852 |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Each - Width | 7 in |
| Dimensions | 14 in x 7 in x 7 in |
| Type | Conduit Body |
| UL File Number | E3397 |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Package Quantity | 1 |
