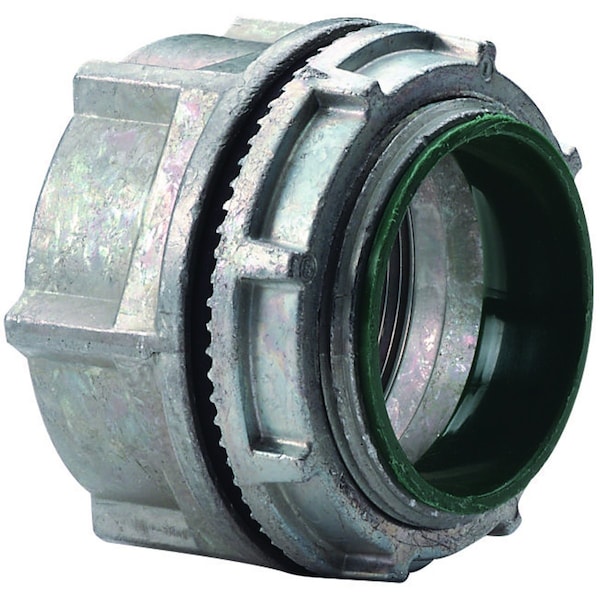

Conduit Fitting Grounding Connector, 3 in, Zinc Alloy, Plain, Gray
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | Grounding Connector |
| Trade Size | 3 in |
| Material | Zinc Alloy |
| Finish | Plain |
| Color | Gray |
| Overall Length | 4.37 in |
| Hazardous Location | Yes |
| Application | Conduit hubs provide a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures. The hubs fit into standard knock-out dimensions. |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Length | 4.37 in |
| Hub Size | 3 |
| Width | 4.37 in |
| Height (In.) | 2.615 |
| Features | Oversized Locknut Provides for a Strong Vibration-Proof Termination, Captive Sealing Ring, Serrations on Hub Body and Locknut Provide Effective Positive Ground Path, Insulated Throat Protects Conductors |
| Type | Weatherproof Conduit Hub |
| Height | 2.615 in |
| Series | WH |
| Dimensions | 4.37 in x 4.37 in x 2.615 in |
| Carton Quantity | 5 |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Package Net Weight | 2.09 |
| Package Quantity | 1 |
