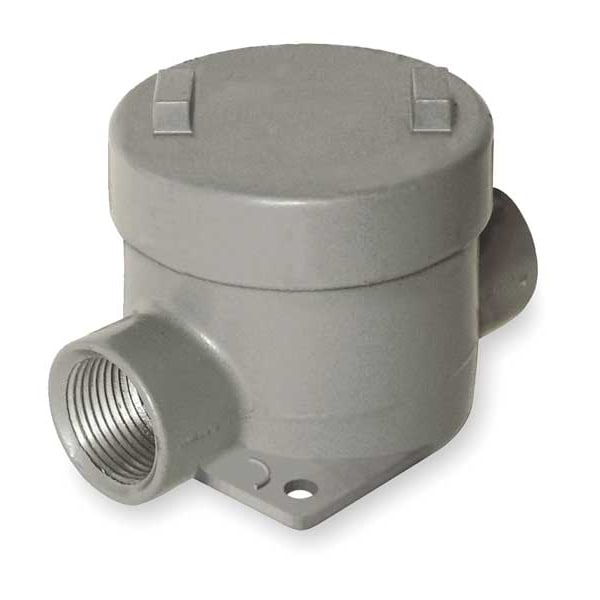

Conduit Outlet Body, Aluminum, C
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 3/4 |
| Series | GE |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | C |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 29 cu in |
| Conduit Outlet Body Hub Size | 3/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre |
| Conduit Outlet Hub Size | 3/4 in |
| Standards | UL |
| Back Type | Flat |
| Color | Gray |
| Form | Form 7 |
| Finish | Powder Epoxy Paint |
| Body Style | C |
| Number of Hubs | 2 |
| Connection Type | Threaded |
| Compatible Conduit Type | RMC |
| Connection Orientation | Straight |
| Thread Size | 3/4 in |
| Hub Style | Threaded |
| Overall Width | 4-7/8 in |
| Overall Length | 4-7/16 in |
| Shape | C |
| Thread Gender | Female |
| Body Type | Conduit Outlet Body |
| Body Capacity | 29 cu in |
| Trade Size | 3/4 in |
| Cover Included | Yes |
| Overall Height | 8-5/16 in |
| Gasket Included | Yes |
| Compatible Conduit Trade Size | 3/4 in |
| Thread Type | NPT |
| Width | 4.88 in |
| Height | 8.31 in |
| Length | 4.44 in |
| Dimensions | 4.44 in x 4.88 in x 8.31 in |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Finish Type | Powder Epoxy Paint |
| Each - Width | 4.88 in |
| Hub Pattern | C |
| CSA File Number | LR11716 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Type | Outlet Body With Cover |
| Size | 4.44 in x 4.88 in x 8.31 in |
| Package Net Weight | 3.1 |
| UL File Number | E10514 |
| Package Quantity | 1 |
