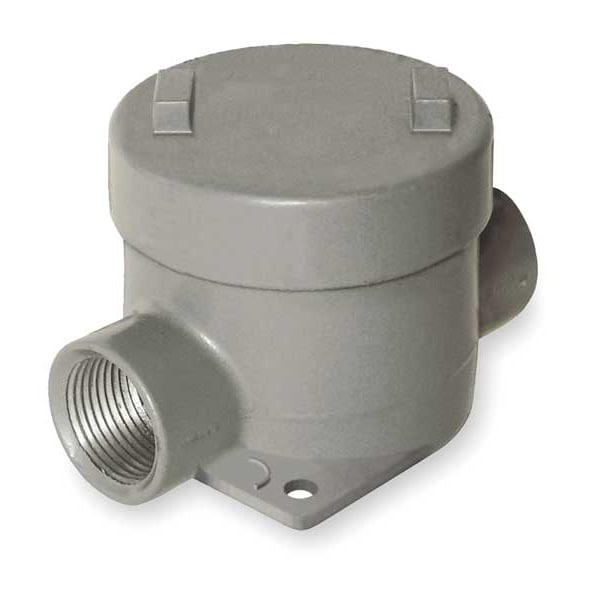

Conduit Outlet Body, Aluminum, C
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1-1/4 |
| Series | GE |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | C |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 29 cu in |
| Conduit Outlet Body Hub Size | 1-1/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre |
| Conduit Outlet Hub Size | 1-1/4 in |
| Standards | UL |
| Color | Gray |
| Back Type | Flat |
| Form | Form 7 |
| Width | 6 in |
| Height | 4.38 in |
| Length | 6.63 in |
| Finish | Powder Epoxy Paint |
| Body Style | C |
| Overall Length | 6-5/8 in |
| Overall Width | 6 in |
| Body Capacity | 29 cu in |
| Compatible Conduit Type | RMC |
| Hub Style | Threaded |
| Overall Height | 4-3/8 in |
| Number of Hubs | 2 |
| Thread Size | 1 1/4 in |
| Gasket Included | Yes |
| Body Type | Conduit Outlet Body |
| Thread Gender | Female |
| Shape | C |
| Connection Orientation | Straight |
| Trade Size | 1-1/4 in |
| Compatible Conduit Trade Size | 1-1/4 in |
| Thread Type | NPT |
| Cover Included | Yes |
| Connection Type | Threaded |
| UPC | 783936000000 |
| Hub Pattern | C |
| Each - Width | 6 in |
| CSA File Number | LR11716 |
| Finish Type | Powder Epoxy Paint |
| Size | 6.63 in x 6 in x 4.38 in |
| UL File Number | E10514 |
| Package Net Weight | 2.9 |
| Dimensions | 6.63 in x 6 in x 4.38 in |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Type | Outlet Body With Cover |
| Package Quantity | 1 |
