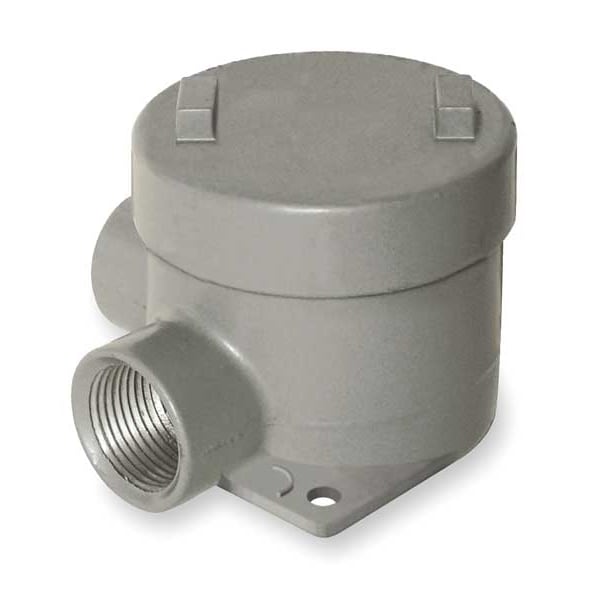

Conduit Outlet Body, Aluminum, L
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1-1/2 |
| Series | GE |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | L |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 29 cu in |
| Conduit Outlet Body Hub Size | 1-1/2 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre |
| Color | Gray |
| Conduit Outlet Hub Size | 1-1/2 in |
| Standards | CSA, UL |
| Back Type | Flat |
| Form | Form 1 |
| Length | 10.31 in |
| Height | 4.13 in |
| Finish | Powder Epoxy Paint |
| Width | 8.38 in |
| Body Style | L |
| Body Capacity | 29 cu in |
| Number of Hubs | 2 |
| Shape | L |
| Thread Gender | Female |
| Connection Type | Threaded |
| Hub Style | Threaded |
| Gasket Included | Yes |
| Thread Size | 1 1/2 in |
| Overall Length | 10-5/16 in |
| Connection Orientation | 90 Degrees |
| Body Type | Conduit Outlet Body |
| Compatible Conduit Type | RMC |
| Cover Included | Yes |
| Overall Width | 8-3/8 in |
| Compatible Conduit Trade Size | 1-1/2 in |
| Trade Size | 1-1/2 in |
| Overall Height | 4-1/8 in |
| Thread Type | NPT |
| Size | 10.31 in x 8.38 in x 4.13 in |
| CSA File Number | LR11716 |
| Each - Width | 8.38 in |
| Package Net Weight | 2.8 |
| Dimensions | 10.31 in x 8.38 in x 4.13 in |
| UL File Number | E10514 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Type | Outlet Body With Cover |
| Hub Pattern | L |
| UPC | 783936000000 |
| Finish Type | Powder Epoxy Paint |
| Package Quantity | 1 |
