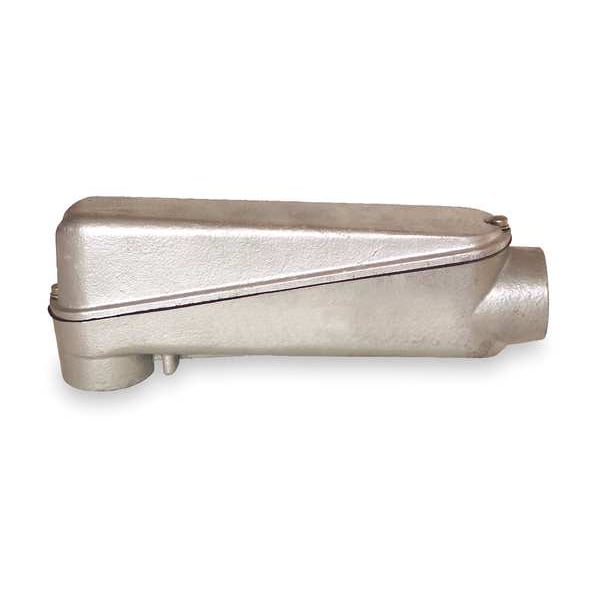

Conduit Outlet Body, Aluminum, LB
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | No |
| Hub Size | 1 |
| Series | Moguls |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | LB |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 87.2 cu in |
| Conduit Outlet Body Hub Size | 1 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Volume is 35 cu. in. |
| Standards | UL |
| Color | Gray |
| Back Type | Flat |
| Conduit Outlet Hub Size | 1 in |
| Form | Form 85 |
| Width | 3 in |
| Length | 10 in |
| Finish | Powder Epoxy Paint |
| Height | 4 in |
| Body Style | LB |
| Number of Hubs | 2 |
| Thread Type | NPT |
| Connection Type | Threaded |
| Body Type | Conduit Outlet Body |
| Gasket Included | Yes |
| Shape | LB |
| Thread Gender | Female |
| Overall Width | 3 in |
| Compatible Conduit Trade Size | 1/2 in |
| Cover Included | Yes |
| Trade Size | 1 in |
| Connection Orientation | 90 Degrees |
| Overall Height | 4 in |
| Body Capacity | 87.2 cu in |
| Thread Size | 1 in |
| Hub Style | Threaded |
| Overall Length | 10 in |
| Compatible Conduit Type | RMC, IMC |
| Hub Pattern | LB |
| Finish Type | Powder Epoxy Paint |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Package Net Weight | 3.5 |
| Application | Mogul fittings are for use with rigid and IMC raceways. Use where standard conduit bodies do not provide adequate access and wiring area for the pulling of large and heavy conductors. For right angle bends where splices, pulls, and taps are needed in a we |
| Type | Conduit Body With Cover & Gasket |
| UPC | 783937000000 |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Dimensions | 10 in x 3 in x 4 in |
| Each - Width | 3 in |
| Package Quantity | 1 |
