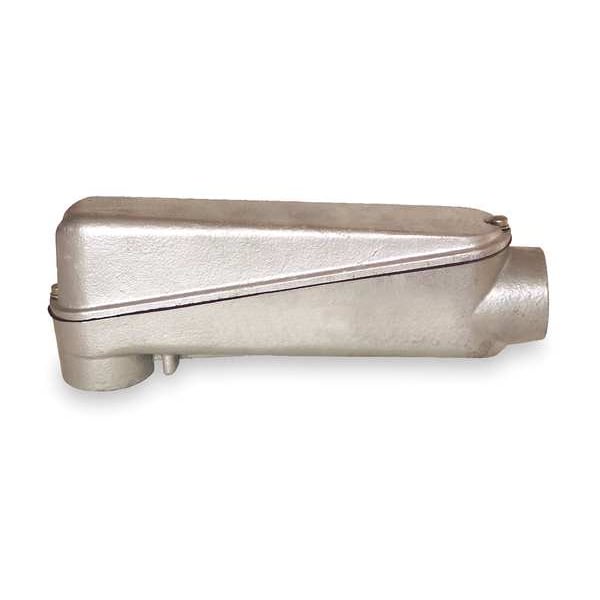

Conduit Outlet Body, Aluminum, LB
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | No |
| Hub Size | 1-1/2 |
| Series | Moguls |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | LB |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 243.6 cu in |
| Conduit Outlet Body Hub Size | 1-1/2 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Volume is 97 cu. in. |
| Conduit Outlet Hub Size | 1-1/2 in |
| Standards | CSA, UL |
| Color | Gray |
| Back Type | Flat |
| Form | Form 85 |
| Length | 15 in |
| Width | 3 in |
| Finish | Powder Epoxy Paint |
| Height | 6 in |
| Body Style | LB |
| Gasket Included | Yes |
| Thread Type | NPT |
| Thread Size | 1 1/2 in |
| Shape | LB |
| Number of Hubs | 2 |
| Overall Width | 3 in |
| Overall Length | 15 in |
| Connection Orientation | 90 Degrees |
| Compatible Conduit Trade Size | 1/2 in |
| Compatible Conduit Type | RMC, IMC |
| Thread Gender | Female |
| Body Type | Conduit Outlet Body |
| Trade Size | 1-1/2 in |
| Cover Included | Yes |
| Overall Height | 6 in |
| Body Capacity | 243.6 cu in |
| Connection Type | Threaded |
| Hub Style | Threaded |
| Hub Pattern | LB |
| Type | Conduit Body With Cover & Gasket |
| Application | Mogul fittings are for use with rigid and IMC raceways. Use where standard conduit bodies do not provide adequate access and wiring area for the pulling of large and heavy conductors. For right angle bends where splices, pulls, and taps are needed in a we |
| Finish Type | Powder Epoxy Paint |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| UPC | 783937000000 |
| Each - Width | 3 in |
| Package Net Weight | 6.2 |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Dimensions | 15 in x 3 in x 6 in |
| Package Quantity | 1 |
