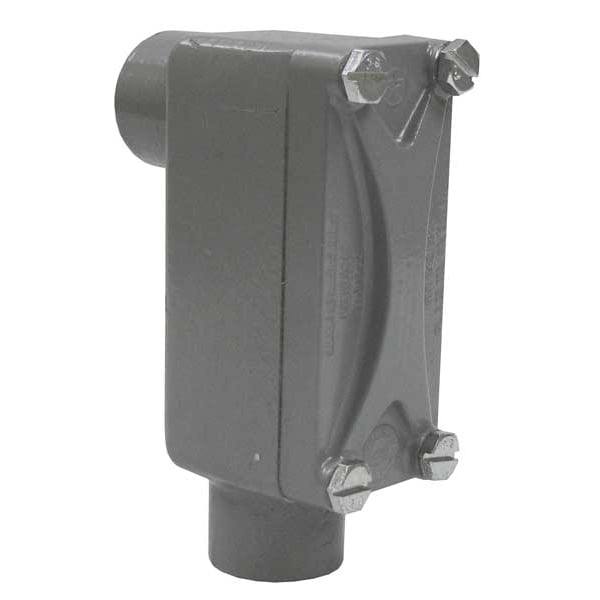

Conduit Outlet Body, Aluminum, LB
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1 in |
| Series | For Standard Body |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | LB |
| Material | Aluminum |
| Conduit Outlet Body Capacity | 11.5 cu in |
| Conduit Outlet Body Hub Size | 1 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Easy Access Covers, Integral Bushings |
| Color | Gray |
| Back Type | Flat |
| Standards | CSA C22.2 No. 40, UL 886,UL 1203 |
| Conduit Outlet Hub Size | 1 in |
| Form | Form 85 |
| Body Style | LB |
| Connection Orientation | 90 Degrees |
| Compatible Conduit Type | RMC |
| Trade Size | 1 in |
| Compatible Conduit Trade Size | 1 in |
| Weight | 1.64 lb |
| Body Type | Conduit Outlet Body |
| Overall Width | 5-7/8 in |
| Thread Size | 1 in |
| Overall Length | 7-3/4 in |
| Hazardous Location Rating | Class I, Divisions 1 and 2, Groups C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2 |
| Connection Type | Threaded |
| Thread Type | NPT |
| Finish | Powder Coated |
| Hub Style | Threaded |
| Overall Height | 4-1/8 in |
| Number of Hubs | 2 |
| Shape | LB |
| Body Capacity | 11.5 cu in |
| Thread Gender | Female |
| Length | 7-3/4 in |
| Width | 5-7/8 in |
| Height | 4-1/8 in |
| Each - Width | 5-7/8 in |
| Hub Pattern | LB |
| Finish Type | Powder Epoxy Paint |
| CSA File Number | LR11716 |
| UL File Number | E10514 |
| Application | For use in hazardous locations. |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Type | Conduit Body |
| Dimensions | 7-3/4 in x 5-7/8 in x 4-1/8 in |
| Package Quantity | 1 |
