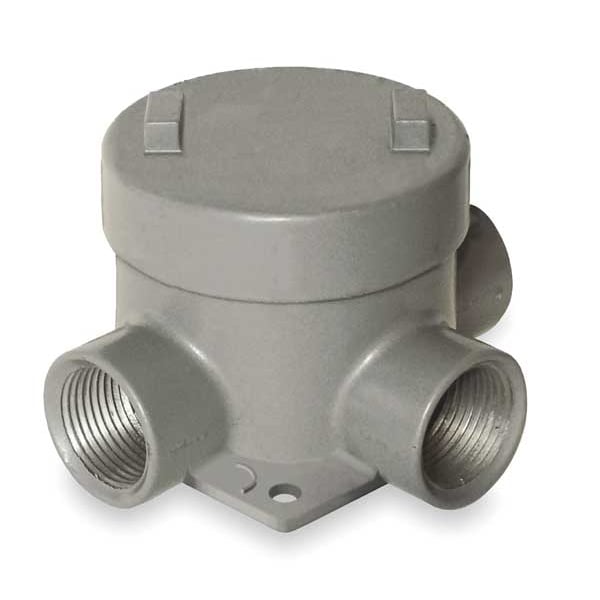

Conduit Outlet Body, Aluminum, T
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 3/4 |
| Series | GE |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | T |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 29 cu in |
| Conduit Outlet Body Hub Size | 3/4 in |
| Includes | Grounding Screw |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre |
| Back Type | Flat |
| Color | Gray |
| Standards | CSA, NEMA 4X, UL |
| Conduit Outlet Hub Size | 3/4 in |
| Form | Form 1 |
| Finish | Powder Epoxy Paint |
| Body Style | T |
| Connection Type | Threaded |
| Hub Style | Threaded |
| Compatible Conduit Trade Size | 3/4 in |
| Thread Gender | Female |
| Gasket Included | Yes |
| Compatible Conduit Type | RMC |
| Body Capacity | 29 cu in |
| Compatible Cover | 2GOU, 4GOU, GECBCB, GECBCM, GECEY |
| Cover Included | Yes |
| Shape | T |
| Overall Length | 6-5/8 in |
| Connection Orientation | Multi-Angle |
| Overall Height | 4-3/4 in |
| Trade Size | 3/4 in |
| Overall Width | 6-1/4 in |
| Thread Size | 3/4 in |
| Body Type | Conduit Outlet Body |
| Number of Hubs | 3 |
| Thread Type | NPT |
| Hazardous Location Rating | Class I, Divisions 1 and 2, Groups B, C, D, Class I, Zones 1 and 2, Groups IIC, IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2 |
| Width | 6-1/4 in |
| Length | 6-5/8 in |
| Height | 4-3/4 in |
| UL File Number | E10514 |
| Type | Outlet Body With Cover |
| Finish Type | Powder Epoxy Paint |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Size | 6.625 in x 6.25 in x 4.75 in |
| Package Net Weight | 3.5 |
| Each - Width | 6-1/4 in |
| Dimensions | 6-5/8 in x 6-1/4 in x 4-3/4 in |
| Hub Pattern | T |
| CSA File Number | LR11716 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Package Quantity | 1 |
