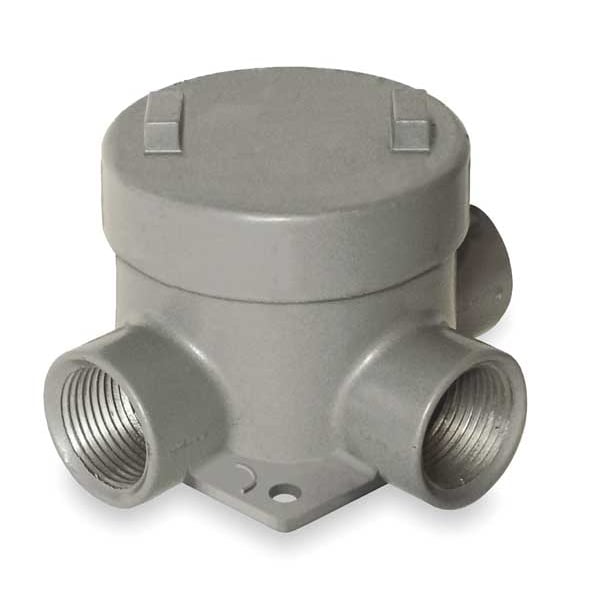

Conduit Outlet Body, Aluminum, T
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1-1/2 |
| Series | GE |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | T |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 29 cu in |
| Conduit Outlet Body Hub Size | 1-1/2 in |
| Includes | Grounding Screw |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre |
| Color | Gray |
| Standards | NEMA 4X, UL |
| Back Type | Flat |
| Conduit Outlet Hub Size | 1-1/2 in |
| Form | Form 1 |
| Height | 4.13 in |
| Finish | Powder Epoxy Paint |
| Width | 8.38 in |
| Length | 10.31 in |
| Body Style | T |
| Thread Type | NPT |
| Body Type | Conduit Outlet Body |
| Overall Length | 10-5/16 in |
| Hazardous Location Rating | Class I, Divisions 1 and 2, Groups B, C, D, Class I, Zones 1 and 2, Groups IIC, IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2 |
| Overall Height | 4-1/8 in |
| Compatible Cover | 2GOU, 4GOU, GECBCB, GECBCM, GECEY |
| Thread Gender | Female |
| Gasket Included | Yes |
| Trade Size | 1-1/2 in |
| Connection Orientation | Multi-Angle |
| Hub Style | Threaded |
| Overall Width | 8-3/8 in |
| Body Capacity | 29 cu in |
| Connection Type | Threaded |
| Number of Hubs | 3 |
| Compatible Conduit Trade Size | 1-1/2 in |
| Shape | T |
| Thread Size | 1 1/2 in |
| Cover Included | Yes |
| Compatible Conduit Type | RMC |
| CSA File Number | LR11716 |
| Finish Type | Powder Epoxy Paint |
| Each - Width | 8.38 in |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Hub Pattern | T |
| Size | 10.31 in x 8.38 in x 4.13 in |
| Type | Outlet Body With Cover |
| Package Net Weight | 3.2 |
| UPC | 783936000000 |
| Dimensions | 10.31 in x 8.38 in x 4.13 in |
| UL File Number | E10514 |
| Package Quantity | 1 |
