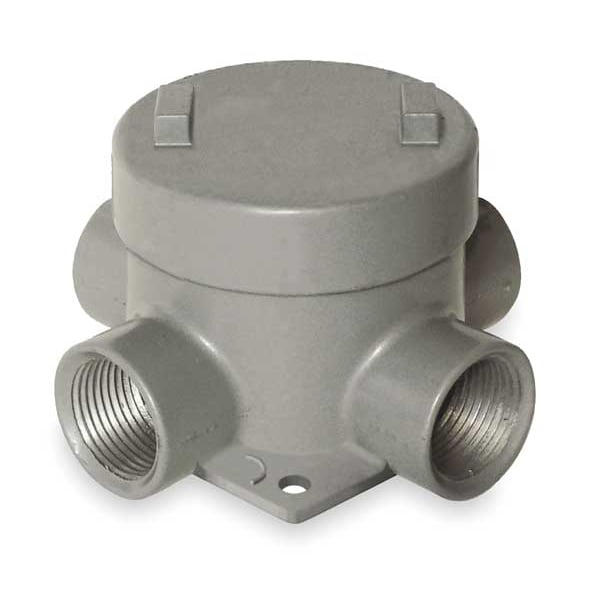

Conduit Outlet Body, Aluminum, X
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 3/4 |
| Series | GE |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | X |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 29 cu in |
| Conduit Outlet Body Hub Size | 3/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre |
| Conduit Outlet Hub Size | 3/4 in |
| Standards | CSA, UL |
| Back Type | Flat |
| Color | Gray |
| Form | Form 1 |
| Finish | Powder Epoxy Paint |
| Body Style | X |
| Gasket Included | Yes |
| Body Capacity | 29 cu in |
| Thread Gender | Female |
| Thread Size | 3/4 in |
| Connection Orientation | Multi-Angle |
| Hub Style | Threaded |
| Thread Type | NPT |
| Trade Size | 3/4 in |
| Compatible Conduit Trade Size | 3/4 in |
| Body Type | Conduit Outlet Body |
| Overall Height | 4-3/8 in |
| Number of Hubs | 4 |
| Overall Width | 6 in |
| Cover Included | Yes |
| Connection Type | Threaded |
| Shape | X |
| Overall Length | 6-5/8 in |
| Compatible Conduit Type | RMC |
| Height | 4.38 in |
| Width | 6 in |
| Length | 6.63 in |
| Each - Width | 6 in |
| Dimensions | 6.63 in x 6 in x 4.38 in |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Type | Outlet Body With Cover |
| CSA File Number | LR11716 |
| Hub Pattern | X |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Size | 6.63 in x 6 in x 4.38 in |
| Finish Type | Powder Epoxy Paint |
| UL File Number | E10514 |
| Package Net Weight | 3.85 |
| Package Quantity | 1 |
