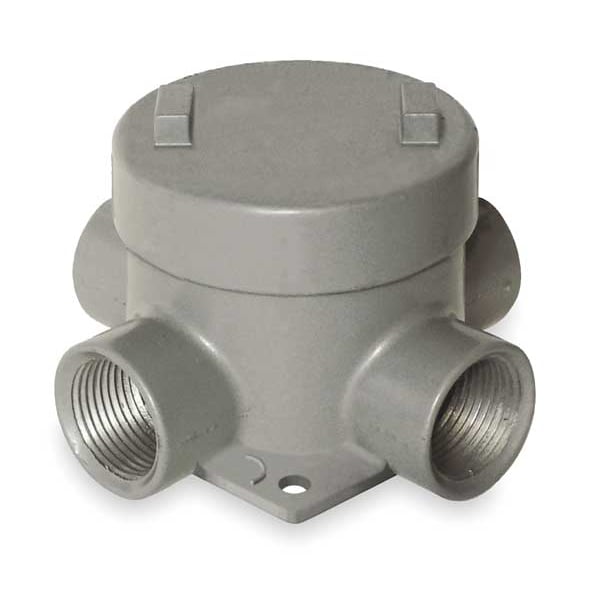

Conduit Outlet Body, Aluminum, X
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1-1/2 |
| Series | GE |
| Conduit Outlet Body Material | Aluminum |
| Conduit Outlet Body Style | X |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 29 cu in |
| Conduit Outlet Body Hub Size | 1-1/2 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre |
| Color | Gray |
| Conduit Outlet Hub Size | 1-1/2 in |
| Standards | UL |
| Back Type | Flat |
| Form | Form 1 |
| Height | 4.13 in |
| Finish | Powder Epoxy Paint |
| Width | 8.38 in |
| Length | 10.31 in |
| Body Style | X |
| Body Capacity | 29 cu in |
| Compatible Conduit Type | RMC |
| Overall Length | 10-5/16 in |
| Overall Height | 4-1/8 in |
| Thread Gender | Female |
| Hub Style | Threaded |
| Thread Size | 1 1/2 in |
| Cover Included | Yes |
| Connection Type | Threaded |
| Compatible Conduit Trade Size | 1-1/2 in |
| Shape | X |
| Trade Size | 1-1/2 in |
| Connection Orientation | Multi-Angle |
| Number of Hubs | 4 |
| Body Type | Conduit Outlet Body |
| Thread Type | NPT |
| Overall Width | 8-3/8 in |
| Gasket Included | Yes |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Package Net Weight | 3.5 |
| Dimensions | 10.31 in x 8.38 in x 4.13 in |
| Size | 10.31 in x 8.38 in x 4.13 in |
| UPC | 783936000000 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Hub Pattern | X |
| Finish Type | Powder Epoxy Paint |
| UL File Number | E10514 |
| Type | Outlet Body With Cover |
| CSA File Number | LR11716 |
| Each - Width | 8.38 in |
| Package Quantity | 1 |
