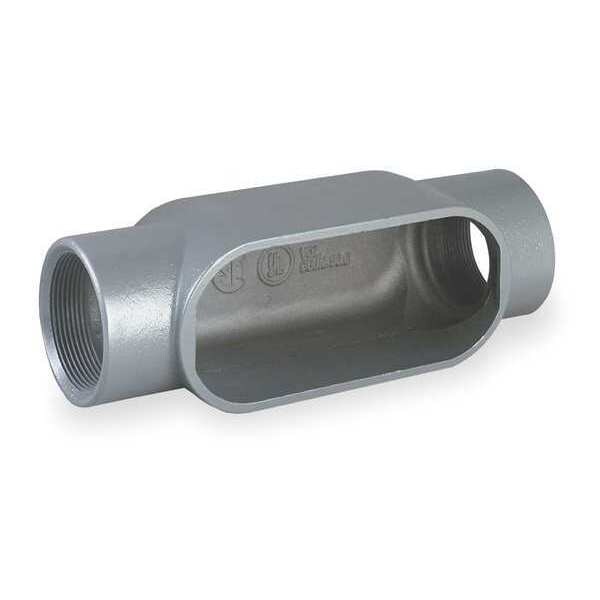

Conduit Outlet Body, Iron, 1-1/4 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1-1/4 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | C |
| Material | Iron |
| Conduit Outlet Body Capacity | 19.5 cu in |
| Conduit Outlet Body Hub Size | 1-1/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Conduit Outlet Hub Size | 1-1/4 in |
| Back Type | Flat |
| Color | Gray |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | C |
| Hub Style | Threaded |
| Shape | C |
| Compatible Cover | 470, 470C, 470CG, 470CGSA, 470CSA, 470G, 470GSA, 470SA |
| Connection Type | Threaded |
| Number of Hubs | 2 |
| Overall Width | 3 in |
| Overall Height | 3 in |
| Body Type | Conduit Outlet Body |
| Overall Length | 8 in |
| Compatible Conduit Type | RMC, IMC |
| Thread Type | NPT |
| Compatible Conduit Trade Size | 1-1/4 in |
| Connection Orientation | Straight |
| Trade Size | 1-1/4 in |
| Thread Size | 1 1/4 in |
| Thread Gender | Female |
| Finish | Powder Coated |
| Body Capacity | 19.5 cu in |
| Hazardous Location Rating | Class I, Division 2, Class I, Zone 2 |
| Height | 3 in |
| Length | 8 in |
| Width | 3 in |
| Each - Width | 3 in |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Type | Conduit Body |
| UL File Number | E3397 |
| Finish Type | Powder Epoxy Paint |
| Dimensions | 8 in x 3 in x 3 in |
| CSA File Number | LR11852 |
| Hub Pattern | C |
| Package Quantity | 1 |
